SPIRAL CABLE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the spiral cable sub-assembly removal/installation are shown below.

Necessary Procedures after parts removed / installed / replaced
Replacement Part or Procedure Necessary Procedures Effects / Inoperative when not Performed Link
Disconnect cable from negative battery terminal

w/ Power Back Door System:

Reset back door close position

 Power back door system

Click here

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    B003JMU

    Click here

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B003RP6

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

  4. REMOVE STEERING WHEEL ASSEMBLY

    Click here

  5. INSPECT SPIRAL CABLE SUB-ASSEMBLY

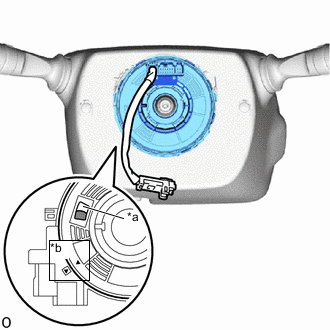

    1. B003K4DC01
      *a Check Window
      *b Matchmark
      B003NOZ U-Turn Point

      Check the check window shown in the illustration.

      With the steering wheel straight ahead, align the matchmarks to check the U-turn point of the cable from the check window.

      Note

      When the conditions above cannot be checked via the check window with the front wheels facing straight ahead, there may be a malfunction in the spiral cable sub-assembly. In this case, replace the spiral with cable sensor sub-assembly with a new one.

  6. REMOVE LOWER STEERING COLUMN COVER

    Click here

  7. REMOVE UPPER STEERING COLUMN COVER

    Click here

  8. REMOVE SPIRAL CABLE SUB-ASSEMBLY

    Note


    • Do not replace the spiral cable sub-assembly with the battery connected and the ignition switch ON.

    • Do not rotate the spiral cable sub-assembly with the battery connected and the ignition switch ON.

    • When rotating the spiral cable sub-assembly to check the operation of the sub-assembly (checking for abnormal noise, checking the Data List, etc.), make sure to perform the inspection with the steering wheel assembly installed.

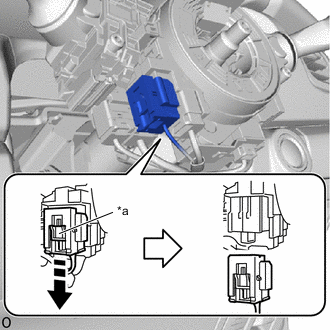

    1. B003KLVC01
      *a Slider
      B003OFB Slide in this Direction

      Slide the slider to release the lock, and then disconnect the airbag connector.

      Note

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

    2. Disconnect each connector.

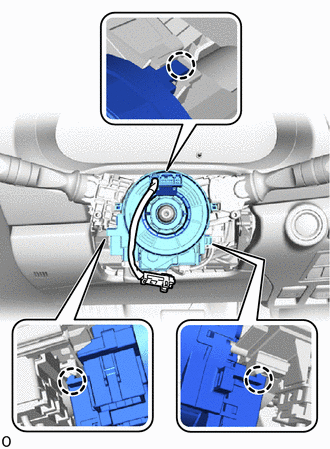

    3. B003JGG

      Detach the claw and remove the spiral cable sub-assembly.

  9. REMOVE SPIRAL CABLE (w/ Steering Sensor)

    Note


    • Remove the spiral cable from the steering sensor only when replacing it.

    • Removing the steering sensor from the spiral cable sub-assembly without using a lock pin may result in a misaligned center position of the steering sensor. Therefore, make sure to use the lock pin provided with a new spiral cable when removing the steering sensor from the spiral cable sub-assembly.


    1. B003RI6

      Install the lock pin to the steering sensor.

      Note


      • Use the lock pin provided with a new spiral cable.

      • Do not remove the lock pin before the spiral cable is installed to the steering sensor.

    2. B003KJ5

      Detach the 6 claws and remove the spiral cable from the steering sensor.
