CLOCK INSPECTION

PROCEDURE


  1. INSPECT CLOCK ASSEMBLY


    1. B003Q1HC01

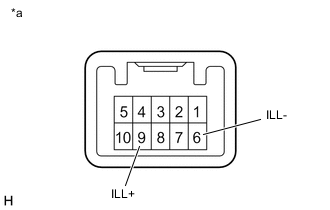

      *a

      Component without harness connected

      (Clock Assembly)

      Check the illumination.

      Apply battery voltage to the connector and check the illumination condition.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → Terminal 9 (ILL+)

      Battery negative (-) → Terminal 6 (ILL-)

      		 Illuminates

      If the result is not as specified, replace the clock assembly.
