DOOR CONTROL BATTERY INSTALLATION

PROCEDURE


  1. INSTALL DOOR CONTROL BATTERY

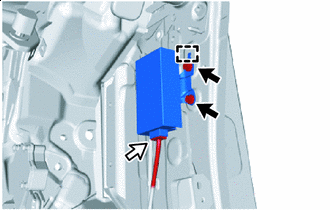

    1. B003R7DC02
      B003R2S Bolt
      B003LF2 Connector

      Connect the connector.

    2. Attach the hook to install the door control battery with the 2 bolts.

      Torque:
      13 N*m  { 133 kgf*cm, 10 ft.*lbf }

  2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  3. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  5. CHECK SRS WARNING LIGHT


    1. for Type A:

      Click here

    2. for Type B:

      Click here
