DOOR CONTROL BATTERY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the door lock control battery removal/installation are shown below.

Necessary Procedures After Parts Removed / Installed / Replaced
Replacement Part or Procedure Necessary Procedures Effects / Inoperative when not Performed Link
Disconnect cable from negative battery terminal

    w/ Power Back Door System:

  • Reset back door close position

 Power back door system

Click here

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for RHD vehicles.

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    B003JMU

    for Type A:

    Click here

    for Type B:

    Click here

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B003RP6

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  4. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  5. REMOVE DOOR CONTROL BATTERY

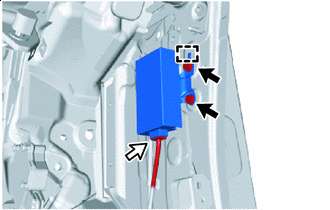

    1. B003R7DC01
      B003R2S Bolt
      B003LF2 Connector

      Remove the 2 bolts.

    2. Detach the hook and remove the door control battery.

    3. Disconnect the connector.
