DOOR CONTROL RELAY(w/ Double Locking System) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips

A bolt without a torque specification is shown in the standard bolt chart.

Click here

PROCEDURE


  1. INSTALL DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY

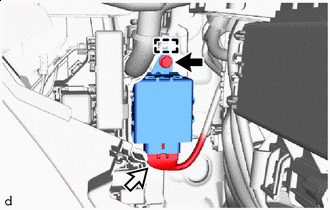

    1. B003RTSC02
      B003R2S Bolt
      B003LF2 Connector

      Connect the connector.

    2. Attach the guide to install the double lock door control relay assembly with the bolt.

      Torque:
      13 N*m  { 133 kgf*cm, 10 ft.*lbf }

  2. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

    Click here

  3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Click here
