DOOR CONTROL RECEIVER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the door control receiver removal/installation are shown below.

Necessary Procedures After Parts Removed / Installed / Replaced
Replacement Part or Procedure Necessary Procedures Effects / Inoperative when not Performed Link
Disconnect cable from negative battery terminal

    w/ Power Back Door System:

  • Reset back door close position

 Power back door system

Click here

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedures listed below are for RHD vehicles.

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    B003JMU

    Click here

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B003RP6

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  4. REMOVE SMART DOOR CONTROL RECEIVER ASSEMBLY (w/ Smart Entry and Start System)

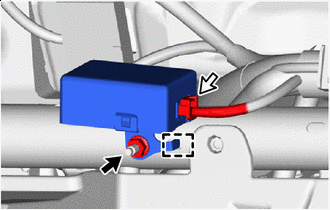

    1. B003NU1C01
      B003R2S Nut
      B003LF2 Connector

      Remove the nut.

    2. Detach the guide and remove the smart door control receiver assembly.

    3. Disconnect the connector.

  5. REMOVE DOOR CONTROL RECEIVER (w/o Smart Entry and Start System)

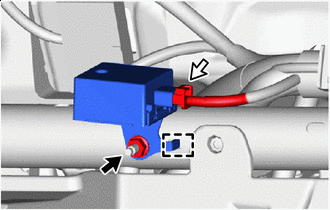

    1. B003P31C01
      B003R2S Nut
      B003LF2 Connector

      Remove the nut.

    2. Detach the guide and remove the door control receiver.

    3. Disconnect the connector.
