REAR DOOR LOCK COMPONENTS

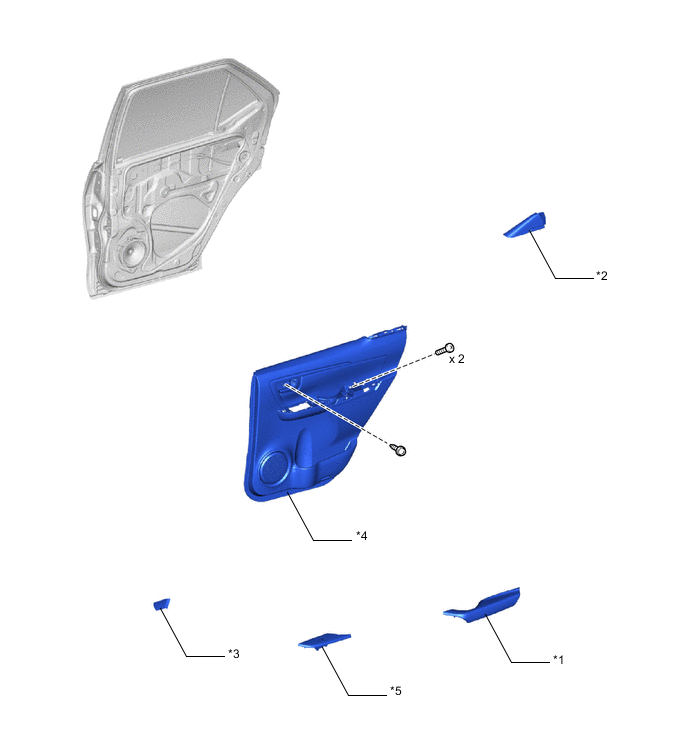

ILLUSTRATION
| *1 | REAR ARMREST ASSEMBLY RH | *2 | REAR DOOR FRAME GARNISH RH |
| *3 | REAR DOOR INSIDE HANDLE BEZEL PLUG RH | *4 | REAR DOOR TRIM BOARD SUB-ASSEMBLY RH |
| *5 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - | - |

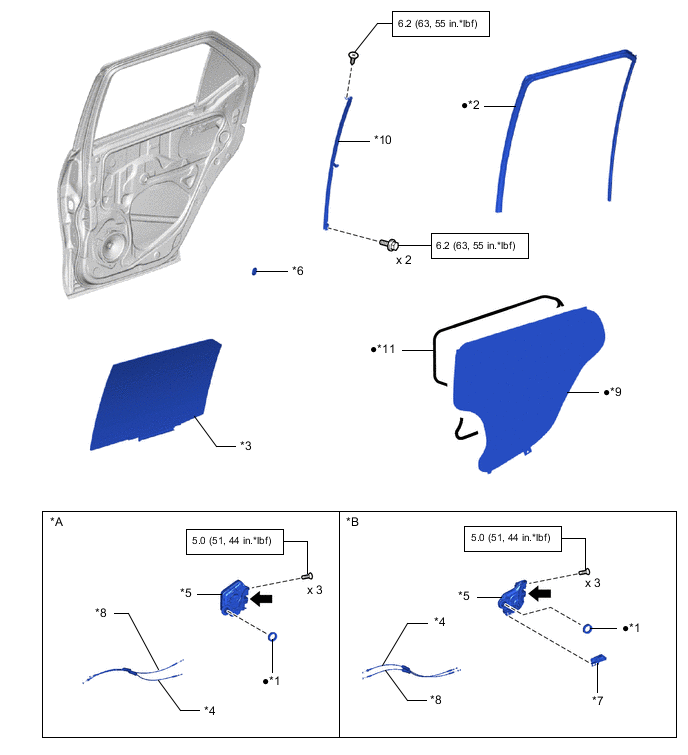

ILLUSTRATION
| *A | w/ Double Locking System | *B | w/o Double Locking System |
| *1 | DOOR LOCK WIRING HARNESS SEAL | *2 | REAR DOOR GLASS RUN RH |
| *3 | REAR DOOR GLASS SUB-ASSEMBLY RH | *4 | REAR DOOR INSIDE LOCKING CABLE ASSEMBLY RH |
| *5 | REAR DOOR LOCK ASSEMBLY RH | *6 | REAR DOOR LOCK CHILD PROTECTION COVER RH |
| *7 | REAR DOOR LOCK COVER SUB-ASSEMBLY RH | *8 | REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY RH |
| *9 | REAR DOOR SERVICE HOLE COVER RH | *10 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY RH |
| *11 | BUTYL TAPE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |
