FRONT DOOR LOCK COMPONENTS

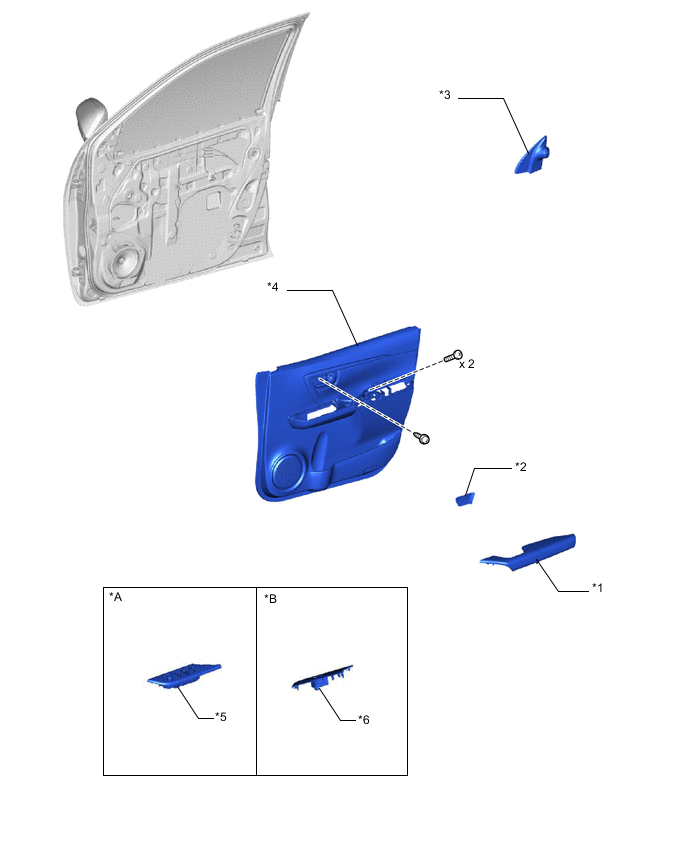

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT ARMREST ASSEMBLY RH | *2 | FRONT DOOR INSIDE HANDLE BEZEL PLUG RH |
| *3 | FRONT DOOR LOWER FRAME BRACKET GARNISH RH | *4 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH |
| *5 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | *6 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |

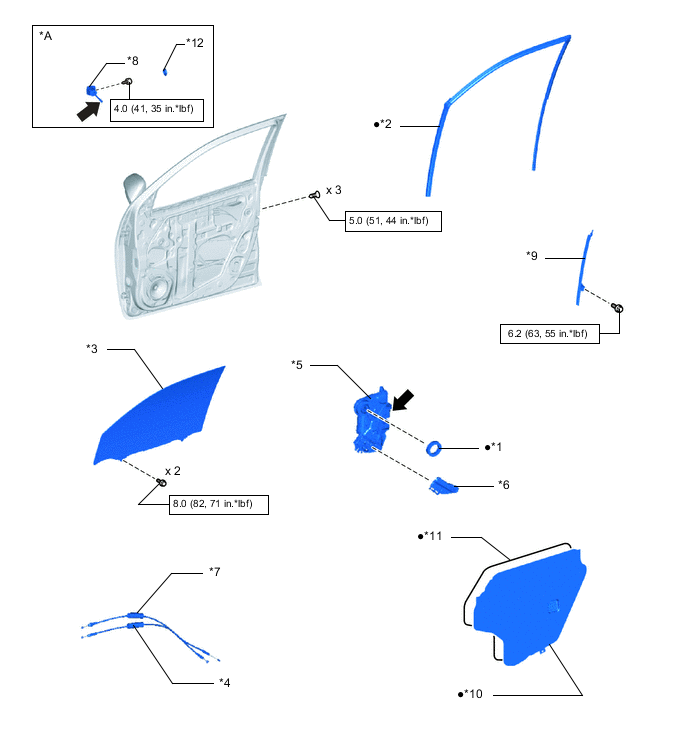

ILLUSTRATION
| *A | for Driver Side | - | - |
| *1 | DOOR LOCK WIRING HARNESS SEAL | *2 | FRONT DOOR GLASS RUN RH |
| *3 | FRONT DOOR GLASS SUB-ASSEMBLY RH | *4 | FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY RH |
| *5 | FRONT DOOR LOCK ASSEMBLY RH | *6 | FRONT DOOR LOCK COVER SUB-ASSEMBLY RH |
| *7 | FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY RH | *8 | FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY |
| *9 | FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY RH | *10 | FRONT DOOR SERVICE HOLE COVER RH |
| *11 | BUTYL TAPE | *12 | HOLE PLUG |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |
