UNLOCK WARNING SWITCH INSPECTION

PROCEDURE


  1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

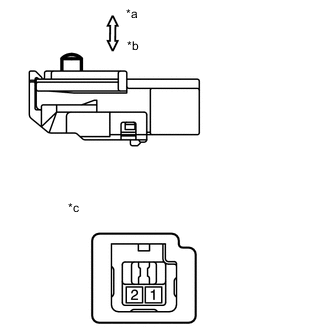

    B003QEEC12
    *a Not Pushed
    *b Pushed
    *c Component without harness connected (Unlock Warning Switch Assembly)

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      1 - 2 Not pushed 10 kΩ or higher
      Pushed Below 1 Ω

      If the result is not as specified, replace the unlock warning switch assembly.
