KEY REMINDER WARNING SYSTEM PARTS LOCATION

ILLUSTRATION

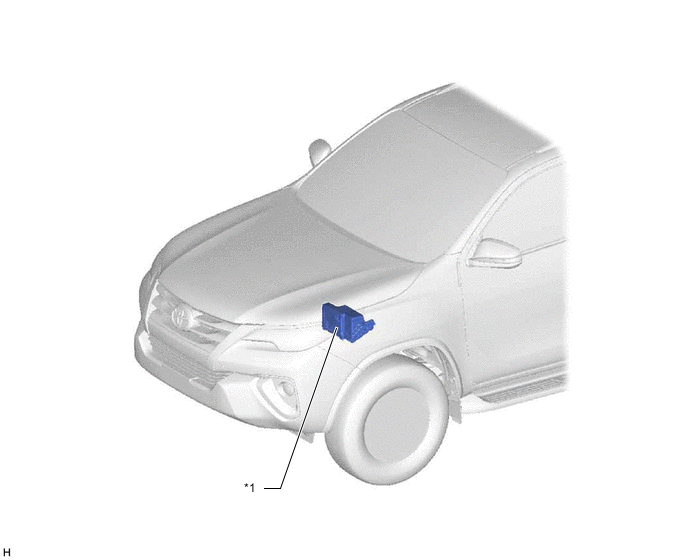

B003RRGC03

*1

ENGINE ROOM RELAY BLOCK

- ECU-B NO.1 FUSE

-

-

ILLUSTRATION

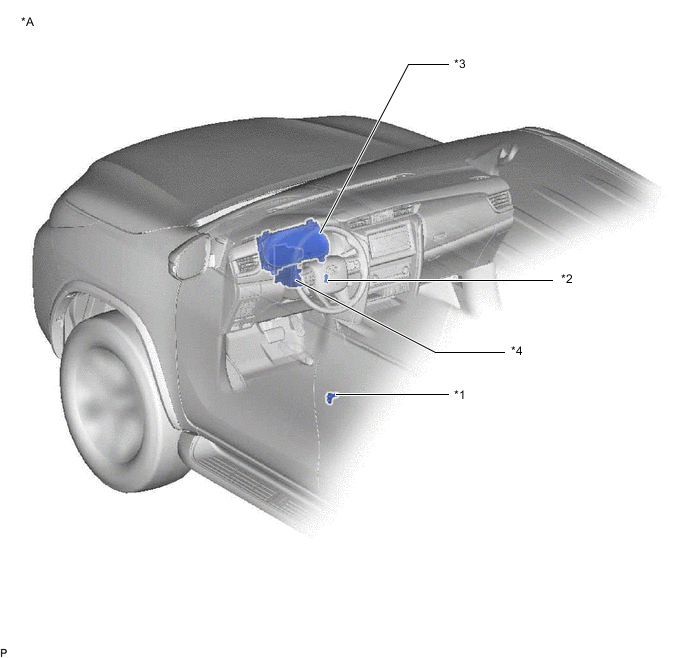

B003JZAC03

*A

for LHD

-

-

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*2

UNLOCK WARNING SWITCH ASSEMBLY

*3

COMBINATION METER ASSEMBLY

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- METER FUSE

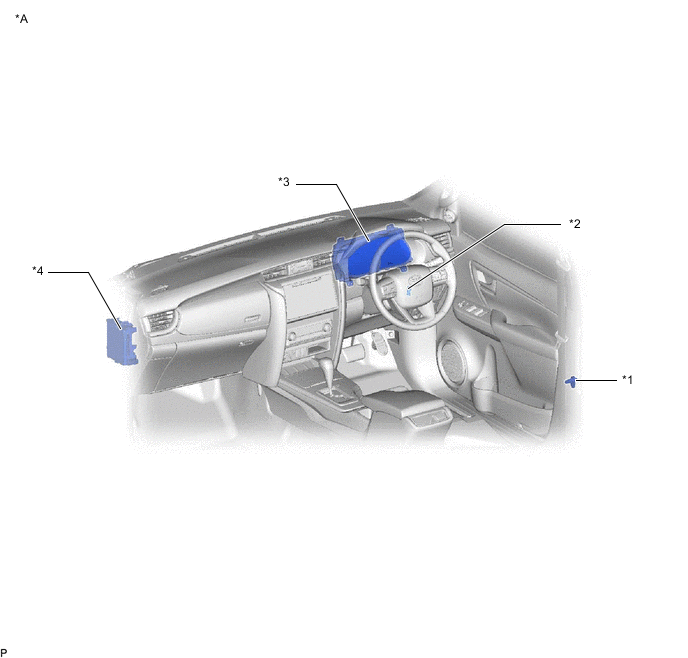

ILLUSTRATION

B003PS8C03

*A

for RHD

-

-

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*2

UNLOCK WARNING SWITCH ASSEMBLY

*3

COMBINATION METER ASSEMBLY

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- METER FUSE
