KEY REMINDER WARNING SYSTEM PARTS LOCATION
ILLUSTRATION
| *1 | ENGINE ROOM RELAY BLOCK - ECU-B NO.1 FUSE |
- | - |

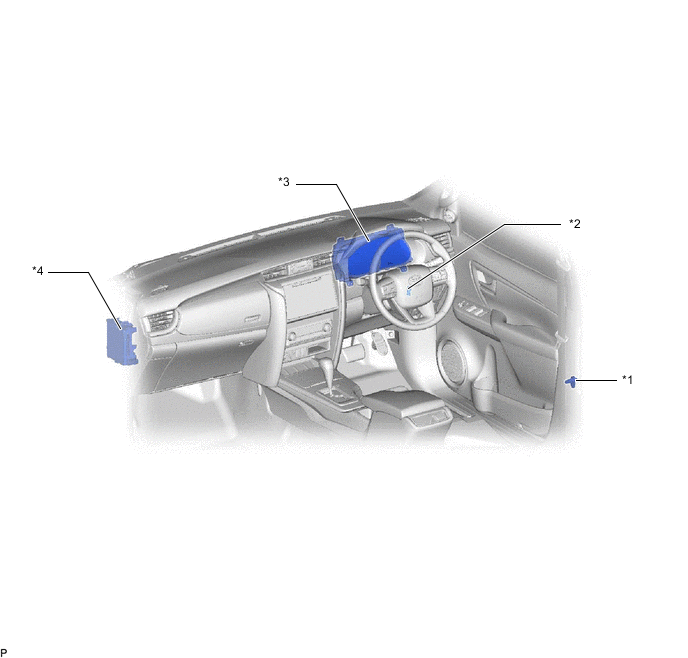

ILLUSTRATION
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *2 | UNLOCK WARNING SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE |
