WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Smart Entry and Start System) SYSTEM DIAGRAM


  1. Wireless Door Lock Control System

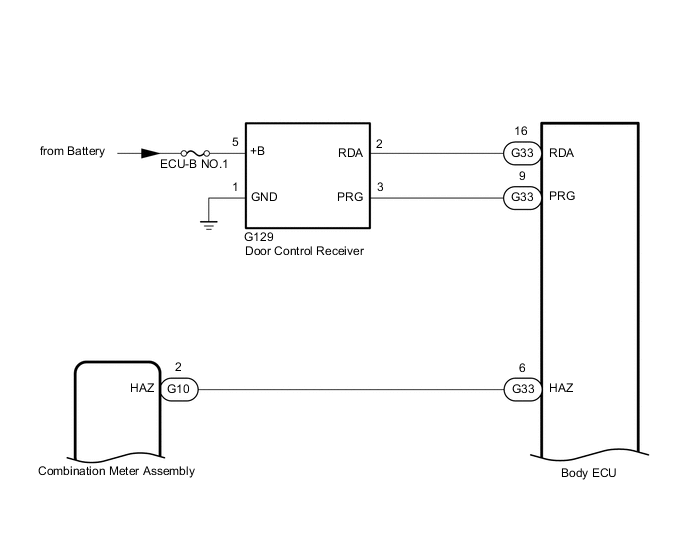

    B003N74E06

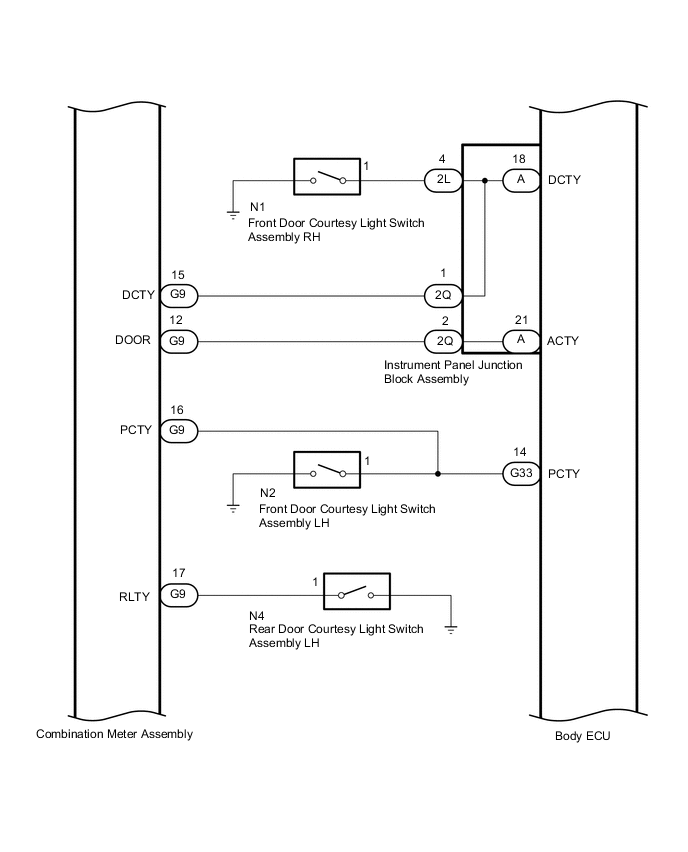

    B003KUHE01

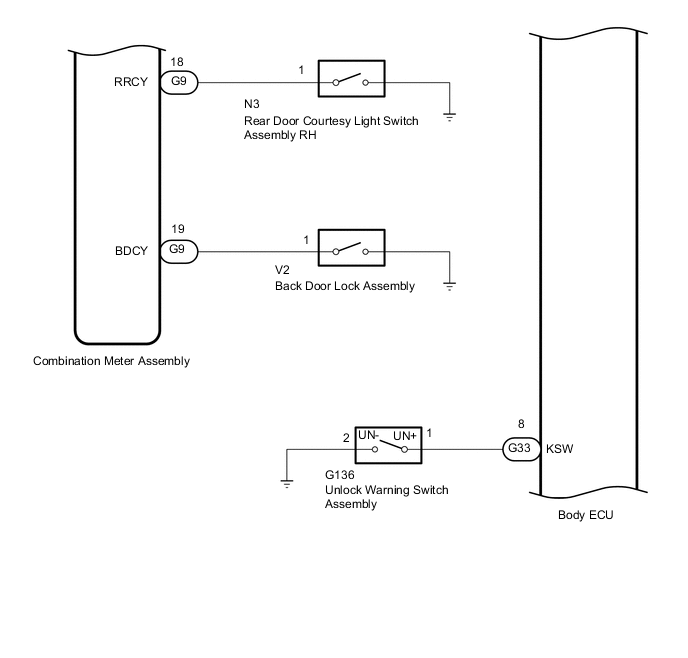

    B003M1LE01
    B003QOTE10

  2. Power Door Lock Control System

    Click here
