WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Smart Entry and Start System) PARTS LOCATION
ILLUSTRATION
| *1 | ENGINE ROOM RELAY BLOCK - ECU-B NO.1 FUSE |
- | - |
ILLUSTRATION

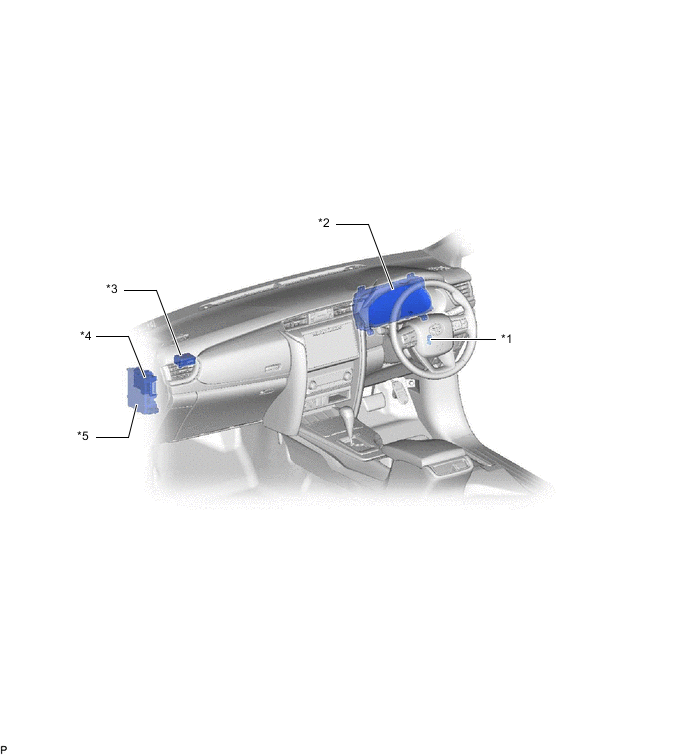

| *1 | UNLOCK WARNING SWITCH ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | DOOR CONTROL RECEIVER | *4 | BODY ECU |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | - | - |
ILLUSTRATION
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR OPENER SWITCH ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *5 | FRONT DOOR LOCK ASSEMBLY LH | *6 | FRONT DOOR LOCK ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | REAR DOOR LOCK ASSEMBLY RH |
