TRANSMITTER BATTERY(w/ Smart Entry and Start System) REPLACEMENT

PROCEDURE


  1. REMOVE TRANSMITTER HOUSING COVER

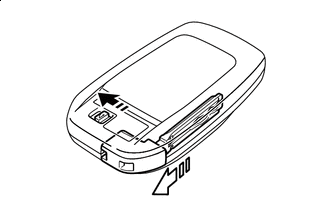

    1. B003R5ZC02
      B003OFB Remove in this Direction (1)
      B003QYY Remove in this Direction (2)

      Push the release hook knob and extract the mechanical key.

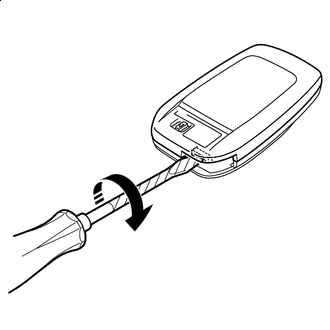

    2. B003SADC02
      B003KT0 Protective Tape
      B003OFB Remove in this Direction

      Using a screwdriver, remove the transmitter housing cover as shown in the illustration.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE TRANSMITTER BATTERY

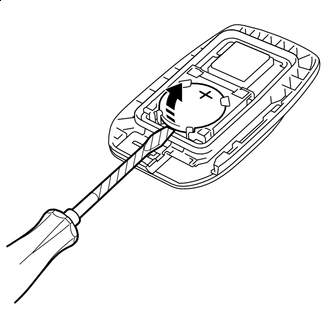

    1. B003JI7C02
      B003KT0 Protective Tape
      B003OFB Remove in this Direction

      Using a screwdriver, remove the transmitter battery.

      Note


      • Do not push the terminals with your finger.

      • Do not forcibly pry up the transmitter battery. The terminals may be damaged.

      • Do not touch the transmitter battery with wet hands. Water may cause rust.

      • Do not touch or move any components inside the transmitter. It may interfere with proper operation.

      • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.

      Tech Tips

      Tape the screwdriver tip before use.

  3. INSTALL TRANSMITTER BATTERY

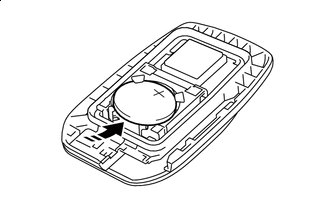

    1. B003PCZC01
      B003OFB Install in this Direction

      Install a new transmitter battery (lithium battery: CR2032) with the positive (+) side facing upward as shown in the illustration.

      Note


      • Do not bend the transmitter battery electrode during insertion.

      • Keep the transmitter cover interior free of dust and oil.

      • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.

  4. INSTALL TRANSMITTER HOUSING COVER

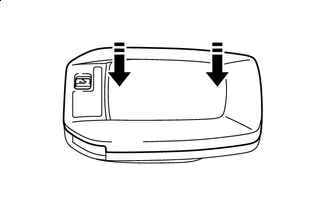

    1. B003JPRC01
      B003OFB Install in this Direction

      Install the transmitter housing cover as shown in the illustration.

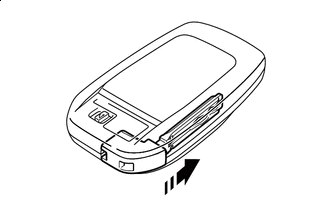

    2. B003OPAC01
      B003OFB Install in this Direction

      Insert the mechanical key as shown in the illustration.

    3. Press one of the transmitter switches and check that the LED illuminates.

      OK
      Transmitter LED illuminates when switch is pressed.
