POWER DOOR LOCK CONTROL SYSTEM PARTS LOCATION
ILLUSTRATION
| *1 | ENGINE ROOM RELAY BLOCK - ECU-B NO.4 FUSE |
- | - |
ILLUSTRATION
| *A | w/ Smart Entry and Start System | *B | w/o Smart Entry and Start System |

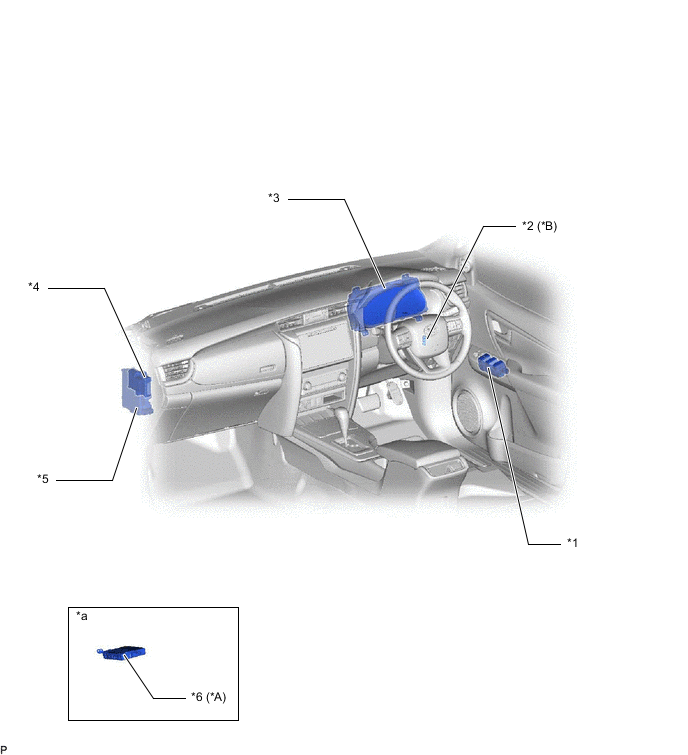

| *1 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY | *2 | UNLOCK WARNING SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | BODY ECU |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO.4 FUSE |
*6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
ILLUSTRATION
| *A | w/ Power Back Door System | *B | w/o Power Back Door System |

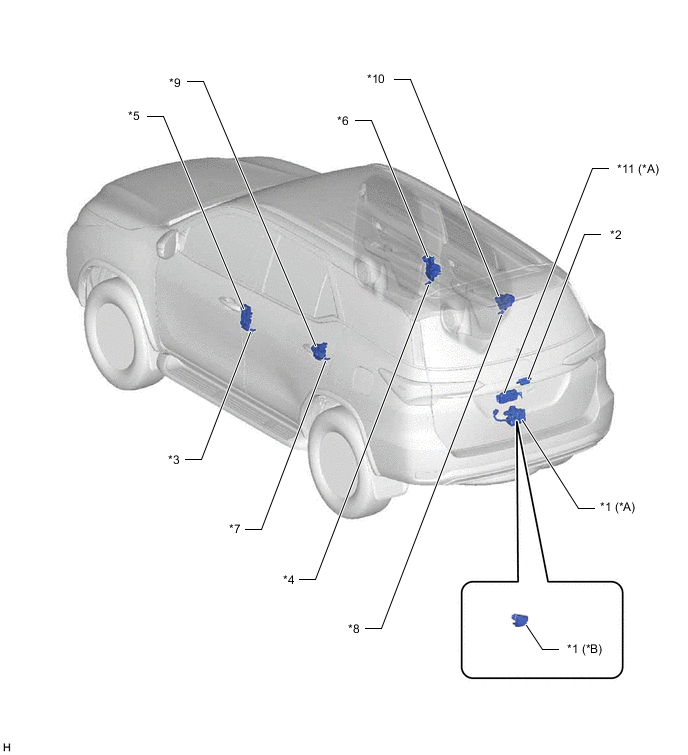

| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR OPENER SWITCH ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *5 | FRONT DOOR LOCK ASSEMBLY LH | *6 | FRONT DOOR LOCK ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | REAR DOOR LOCK ASSEMBLY RH |
| *11 | MULTIPLEX NETWORK DOOR ECU | - | - |
