STEERING COLUMN ASSEMBLY COMPONENTS
ILLUSTRATION
| *A | for Entry and Start System | *B | for Smart Entry and Start System |
| *1 | STEERING COLUMN LOWER COVER | *2 | STEERING COLUMN UPPER COVER |
ILLUSTRATION

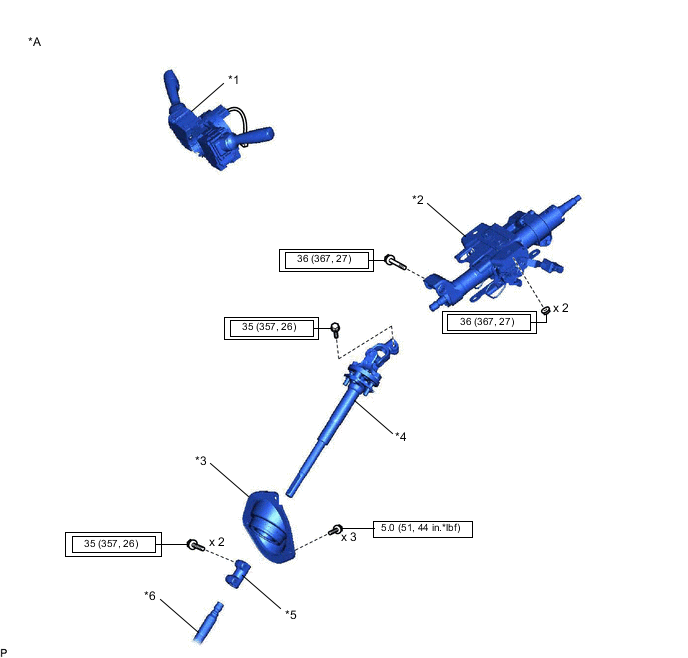

| *A | for LHD | - | - |
| *1 | COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY | *2 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
| *3 | STEERING COLUMN ASSEMBLY | *4 | STEERING SLIDING WITH COUPLING YOKE SUB-ASSEMBLY |
| *5 | STEERING SLIDING YOKE | *6 | NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf) : Specified torque |
ILLUSTRATION

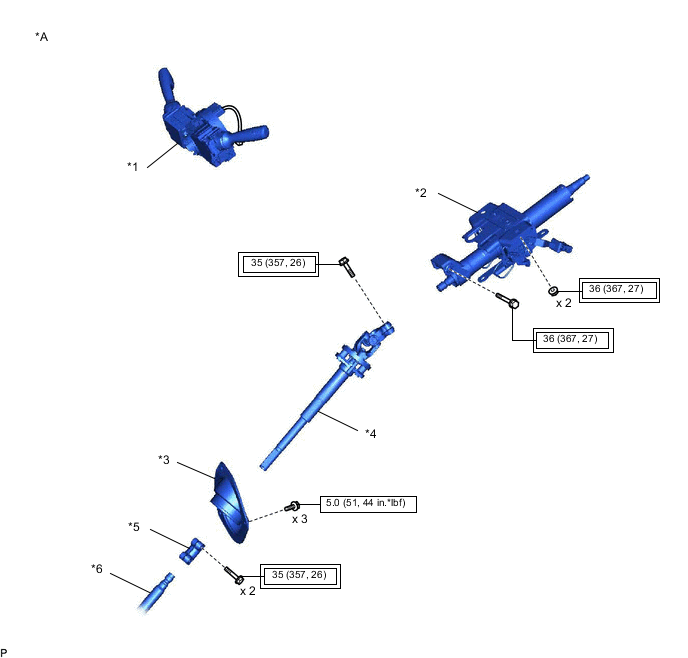

| *A | for RHD | - | - |
| *1 | COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING COLUMN ASSEMBLY |
| *3 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY | *4 | STEERING SLIDING WITH COUPLING YOKE SUB-ASSEMBLY |
| *5 | STEERING SLIDING YOKE | *6 | NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf) : Specified torque |
ILLUSTRATION
| *A | for Entry and Start System | *B | for Smart Entry and Start System |
| *C | for Automatic Transmission | - | - |
| *1 | IGNITION OR STARTER SWITCH ASSEMBLY | *2 | IGNITION SWITCH LOCK CYLINDER ASSEMBLY |
| *3 | KEY INTERLOCK SOLENOID | *4 | STEERING COLUMN ASSEMBLY |
| *5 | STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY | *6 | TRANSPONDER KEY COIL |
| *7 | UN-LOCK WARNING SWITCH ASSEMBLY | *8 | TAPERED-HEAD BOLT |
| ● | Non-reusable part | - | - |
