FUEL LID LOCK CONTROL CABLE ASSEMBLY(for RHD) INSTALLATION

PROCEDURE

INSTALL FUEL FILLER OPENING LID LOCK RETAINER
Install in this Direction
1. Install a new fuel filler opening lid lock retainer as shown in the illustration.
INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
Install in this Direction
1. Attach the claw to install the fuel lid lock control cable sub-assembly to the fuel filler opening lid lock retainer as shown in the illustration.

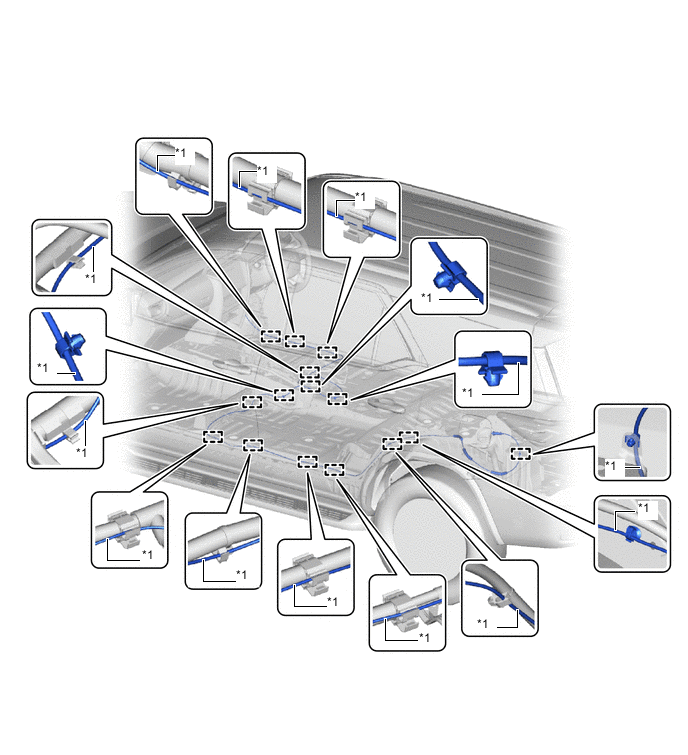

2. Attach the fuel lid lock control cable sub-assembly to each clamp as shown in the illustration.

  *1 Fuel Lid Lock Control Cable Sub-assembly - -
INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
1. Attach the claw to install the fuel lid lock open lever sub-assembly.
INSTALL FRONT FLOOR CARPET ASSEMBLY
1. Install the front floor carpet assembly.
INSTALL QUARTER INSIDE TRIM BOARD LH

Click here
INSTALL REAR NO. 2 SEAT OUTER LAP BELT ANCHOR COVER

Click here
INSTALL REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER

Click here
INSTALL BACK DOOR SCUFF PLATE

Click here
INSTALL LOWER CENTER PILLAR GARNISH LH

Click here
INSTALL OUTER LAP BELT ANCHOR COVER

Click here
INSTALL REAR DOOR SCUFF PLATE LH

Click here
INSTALL FRONT DOOR SCUFF PLATE LH

Click here
INSTALL FRONT DOOR SCUFF PLATE RH

Click here
INSTALL COWL SIDE TRIM BOARD RH

Click here
INSTALL REAR NO. 2 SEAT ASSEMBLY RH

Click here
INSTALL REAR NO. 2 SEAT ASSEMBLY LH

Tech Tips

The procedure described below is for the RH side.
INSTALL FRONT SEAT ASSEMBLY RH
1. for Manual Seat:

  Click here
2. for Power Seat:

  Click here
INSTALL FRONT SEAT ASSEMBLY LH
1. for Manual Seat:

  Tech Tips

  The procedure described below is for the RH side.
2. for Power Seat:

  Tech Tips

  The procedure described below is for the RH side.
