HOOD DISASSEMBLY

PROCEDURE

1. REMOVE HOOD TO RADIATOR SUPPORT SEAL




   1.

      Using a clip remover, remove the 6 clips and hood to radiator support seal.

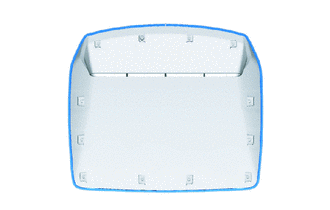

2. REMOVE HOOD INSULATOR




   1.

      w/ Hood Bulge:




      1. Using a clip remover, remove the 10 clips.

      2. Detach the guide and remove the hood insulator.

   2.

      w/ Hood Insulator:




      1. Using a clip remover, remove the 12 clips.

      2. Detach the guide and remove the hood insulator.

3. REMOVE HOOD AIR INTAKE SEAL (w/ Hood Bulge)




   1.

      Detach the clip and remove the hood air intake seal.

4. REMOVE HOOD BULGE (w/ Hood Bulge)




   1.

      Remove the 11 nuts.

   2. Detach the clip and remove the hood bulge.

5. REMOVE NO. 1 HOOD BULGE PROTECTOR (w/ Hood Bulge)




   1.

      Remove the No. 1 hood bulge protector from the hood bulge.

      Note

      Remove any remaining double-sided tape from the hood bulge.

6. REMOVE WASHER NOZZLE SUB-ASSEMBLY

   Click here

7. DISCONNECT WASHER HOSE




   1.

      Detach the clamp and disconnect the washer hose.
