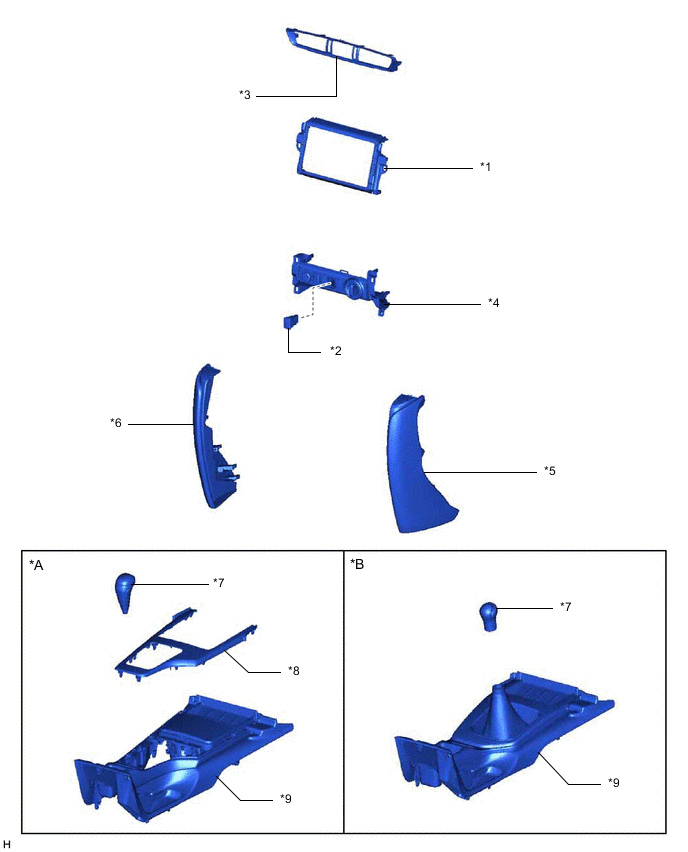

REAR DIFFERENTIAL LOCK CONTROL SWITCH COMPONENTS
ILLUSTRATION
| *A | for Automatic Transmission | *B | for Manual Transmission |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | DIFFERENTIAL LOCK SWITCH |
| *3 | INSTRUMENT PANEL REGISTER BEZEL GARNISH | *4 | LOWER INSTRUMENT COVER SUB-ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *7 | SHIFT LEVER KNOB SUB-ASSEMBLY | *8 | SHIFTING HOLE COVER SUB-ASSEMBLY |
| *9 | UPPER CONSOLE PANEL SUB-ASSEMBLY | - | - |
