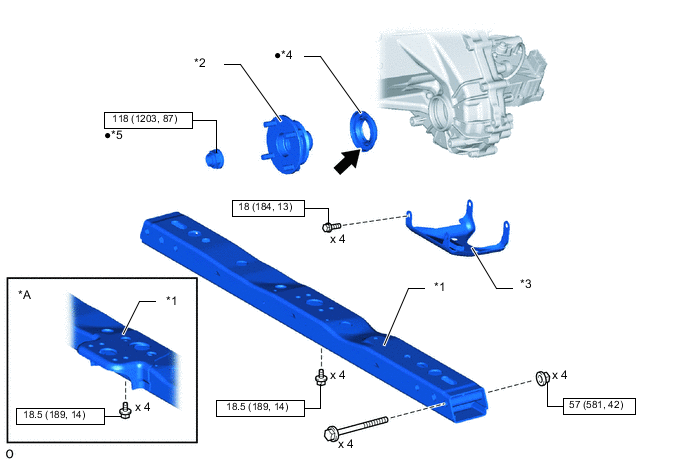

TRANSFER CASE FRONT OIL SEAL COMPONENTS

ILLUSTRATION

B003MVTC01
*A for AC60F (1GR-FE, 2TR-FE), R151F - -
*1 NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY *2 OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
*3 TRANSFER CASE LOWER PROTECTOR *4 TRANSFER CASE OIL SEAL
*5 TRANSFER OUTPUT SHAFT COMPANION FLANGE NUT - -
B003JKT N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
B003R2S MP grease - -
