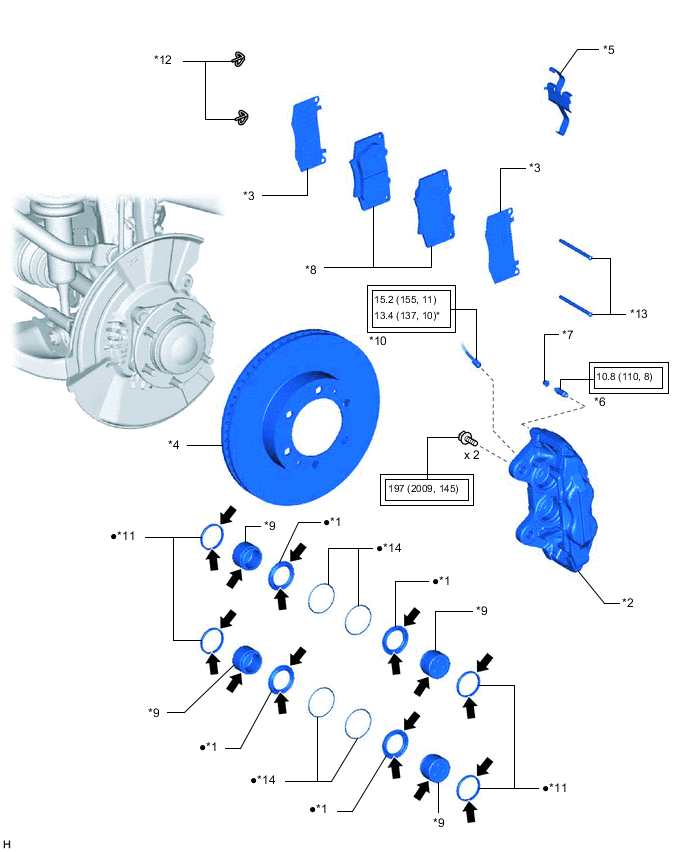

FRONT BRAKE COMPONENTS
ILLUSTRATION
| *1 | CYLINDER BOOT | *2 | DISC BRAKE CYLINDER ASSEMBLY LH |
| *3 | FRONT NO. 1 ANTI-SQUEAL SHIM | *4 | FRONT DISC |
| *5 | FRONT DISC BRAKE ANTI-RATTLE SPRING | *6 | FRONT DISC BRAKE BLEEDER PLUG |
| *7 | FRONT DISC BRAKE BLEEDER PLUG CAP | *8 | FRONT DISC BRAKE PAD |
| *9 | FRONT DISC BRAKE PISTON | *10 | FRONT NO. 1 WHEEL CYLINDER TUBE LH |
| *11 | PISTON SEAL | *12 | PIN HOLD CLIP |
| *13 | DISC BRAKE PAD GUIDE PIN | *14 | SET RING |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part |  |
Lithium soap base glycol grease |
