VACUUM RESERVOIR(for 5L-E) REMOVAL

PROCEDURE


  1. DISCONNECT UNION TO CHECK VALVE HOSE

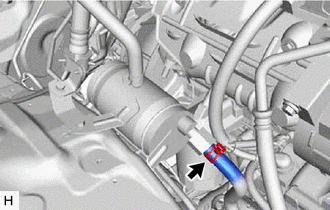

    1. B003RJU

      Slide the clip and disconnect the union to check valve hose from the vacuum reservoir vacuum check valve assembly.

  2. DISCONNECT NO. 1 VACUUM HOSE CONNECTOR

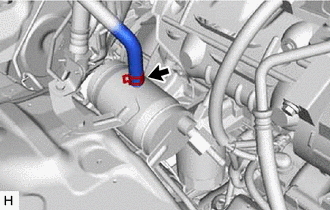

    1. B003LLY

      Slide the clip and disconnect the No.1 vacuum hose connector from the vacuum reservoir assembly.

  3. REMOVE VACUUM RESERVOIR SUB-ASSEMBLY

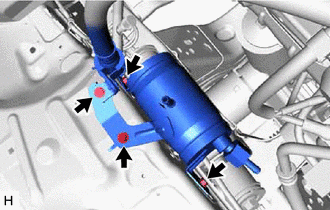

    1. B003JM5

      Remove the bolt and disconnect the suction hose sub-assembly from the vacuum reservoir sub-assembly.

    2. Remove the 3 bolts and vacuum reservoir sub-assembly.
