VACUUM WARNING SWITCH(for Diesel) INSTALLATION

PROCEDURE

1. INSTALL VACUUM WARNING SWITCH GROMMET




   1. Install a new vacuum warning switch grommet to the brake booster assembly.

2. INSTALL VACUUM WARNING SWITCH ASSEMBLY

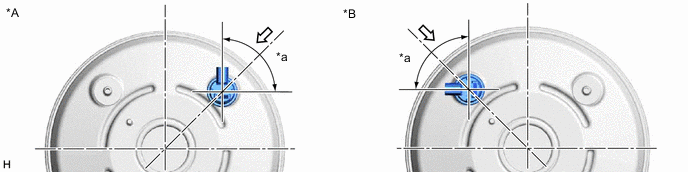

   1. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.



      *A	for LHD	*B	for RHD
      *a	90° +/-20°	-	-
      	Center of the Brake Booster Assembly	-	-

   2. Connect the connector to the vacuum warning switch assembly.
