VACUUM SWITCHING VALVE(for 2TR-FE) COMPONENTS

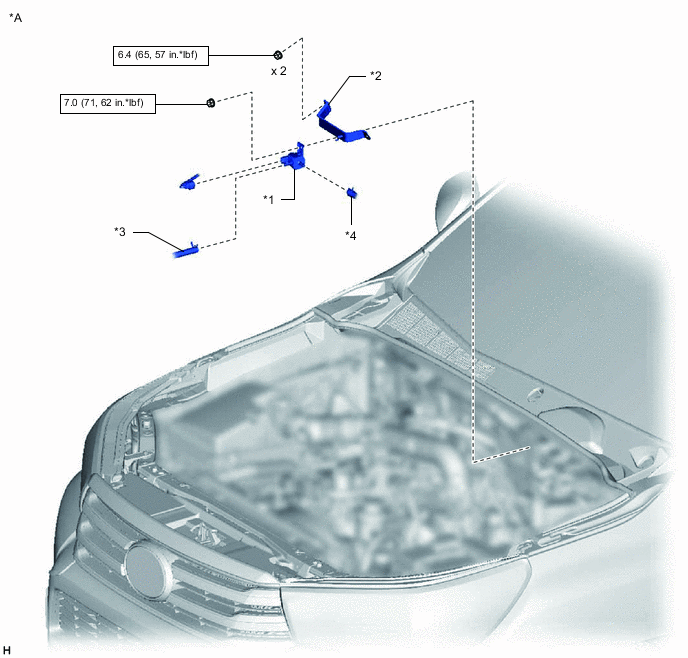

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NO. 1 VACUUM SWITCHING VALVE ASSEMBLY | *2 | VACUUM SWITCHING VALVE BRACKET |
| *3 | NO. 1 AIR HOSE | *4 | NO. 2 AIR HOSE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

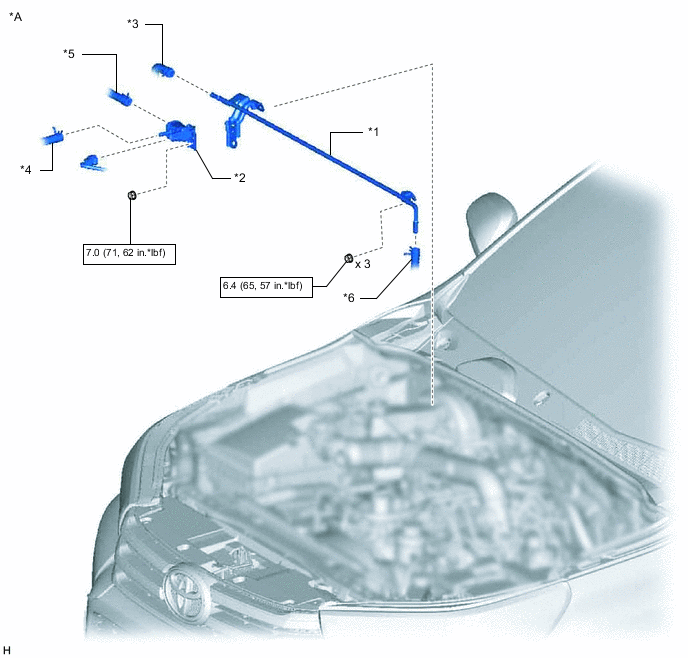

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | BOOSTER VACUUM TUBE | *2 | NO. 1 VACUUM SWITCHING VALVE ASSEMBLY |
| *3 | CHECK VALVE TO BRAKE BOOSTER HOSE | *4 | NO. 1 AIR HOSE |
| *5 | NO. 2 AIR HOSE | *6 | UNION TO CONNECTOR TUBE HOSE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
