EJECTOR TUBE(for 2TR-FE) INSPECTION

PROCEDURE


  1. INSPECT BRAKE BOOSTER VACUUM EJECTOR


    1. Visual inspection.


      1. Check that the brake booster vacuum ejector has no deformation or cracks.

    2. Check the operation.


      1. B003M7PN01

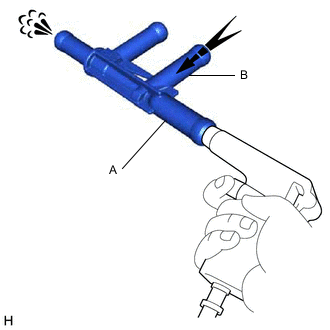

        Check that suction occurs at the port (B) when applying compressed air into the port (A).

        If any defect is found, replace the brake booster vacuum ejector with a new one.
