EJECTOR TUBE(for 2TR-FE) COMPONENTS

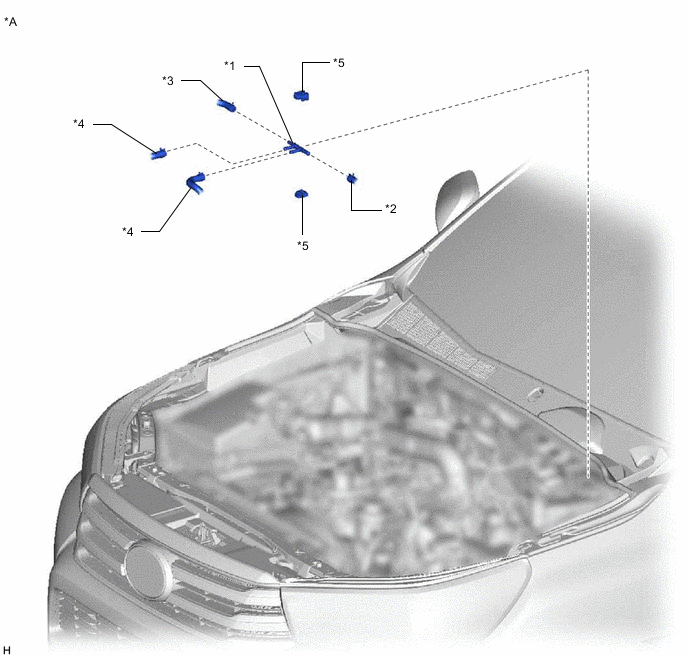

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | BRAKE BOOSTER VACUUM EJECTOR | *2 | NO. 2 AIR HOSE |
| *3 | VACUUM TUBE CONNECTOR HOSE | *4 | CHECK VALVE TO CONNECTOR TUBE HOSE |
| *5 | VACUUM HOSE CLAMP | - | - |

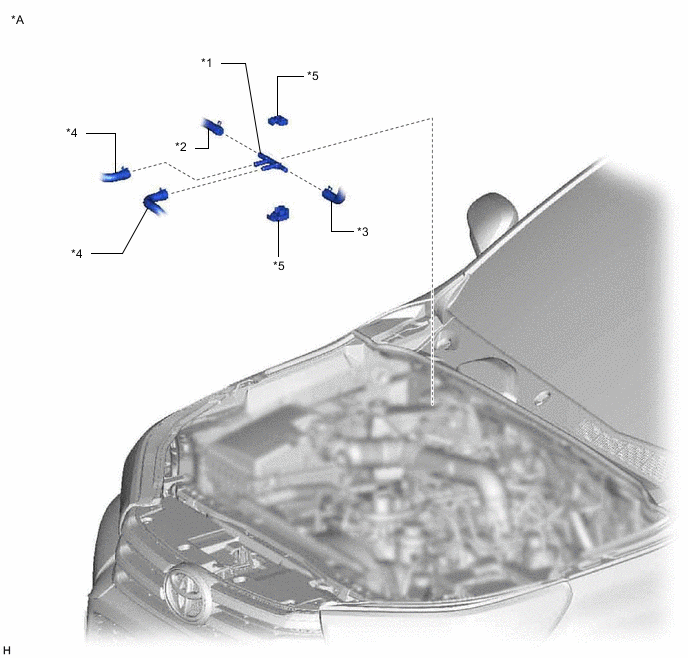

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | BRAKE BOOSTER VACUUM EJECTOR | *2 | NO. 2 AIR HOSE |
| *3 | CHECK VALVE TO BRAKE BOOSTER HOSE | *4 | CHECK VALVE TO CONNECTOR TUBE HOSE |
| *5 | VACUUM HOSE CLAMP | - | - |
