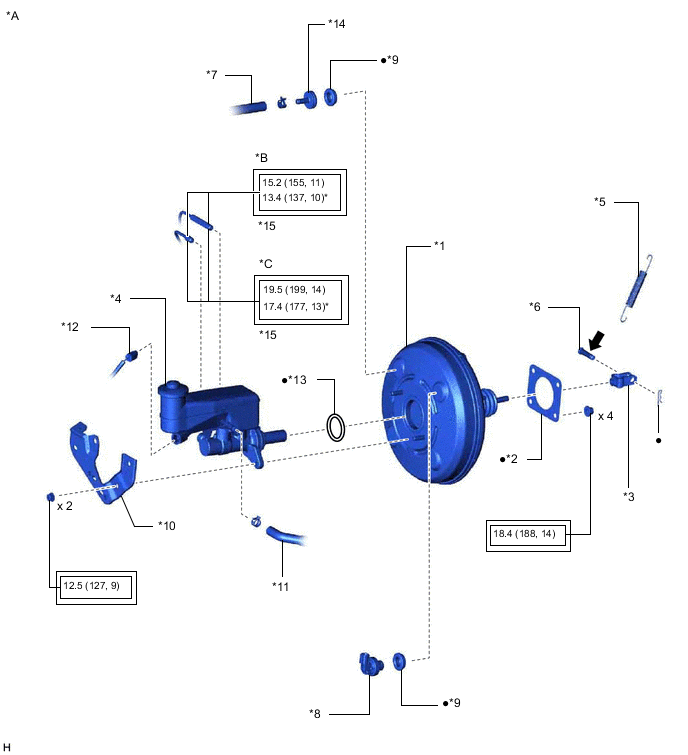

BRAKE BOOSTER COMPONENTS
ILLUSTRATION
| *A | for LHD (Diesel Engine) | *B | w/o VSC |
| *C | w/ VSC | - | - |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *4 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | PUSH ROD PIN |
| *7 | VACUUM HOSE | *8 | VACUUM WARNING SWITCH ASSEMBLY |
| *9 | GROMMET | *10 | BRAKE BOOSTER TUBE CLAMP BRACKET |
| *11 | CLUTCH RESERVOIR TUBE | *12 | BRAKE FLUID WARNING SWITCH CONNECTOR |
| *13 | O-RING | *14 | BRAKE VACUUM CHECK VALVE ASSEMBLY |
| *15 | BRAKE LINE | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part |  |
Lithium soap base glycol grease |

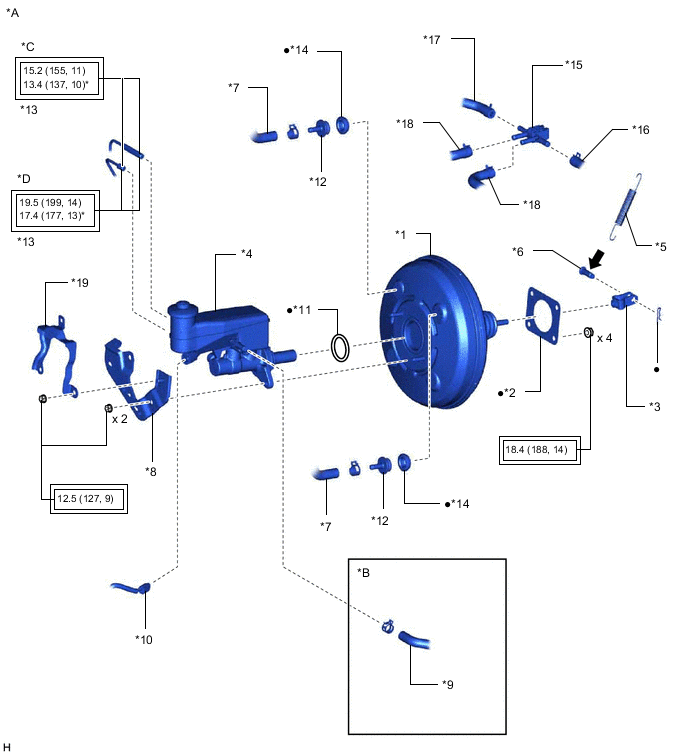

ILLUSTRATION
| *A | for LHD (2TR-FE) | *B | for Manual Transmission |
| *C | w/o VSC | *D | w/ VSC |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *4 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | PUSH ROD PIN |
| *7 | VACUUM HOSE | *8 | BRAKE BOOSTER TUBE CLAMP BRACKET |
| *9 | CLUTCH RESERVOIR TUBE | *10 | BRAKE FLUID WARNING SWITCH CONNECTOR |
| *11 | O-RING | *12 | BRAKE VACUUM CHECK VALVE ASSEMBLY |
| *13 | BRAKE LINE | *14 | GROMMET |
| *15 | BRAKE BOOSTER VACUUM EJECTOR | *16 | NO. 2 AIR HOSE |
| *17 | UNION TO CONNECTOR TUBE HOSE | *18 | VACUUM TUBE CONNECTOR HOSE |
| *19 | RESERVOIR HOSE BRACKET | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part | |
Lithium soap base glycol grease |

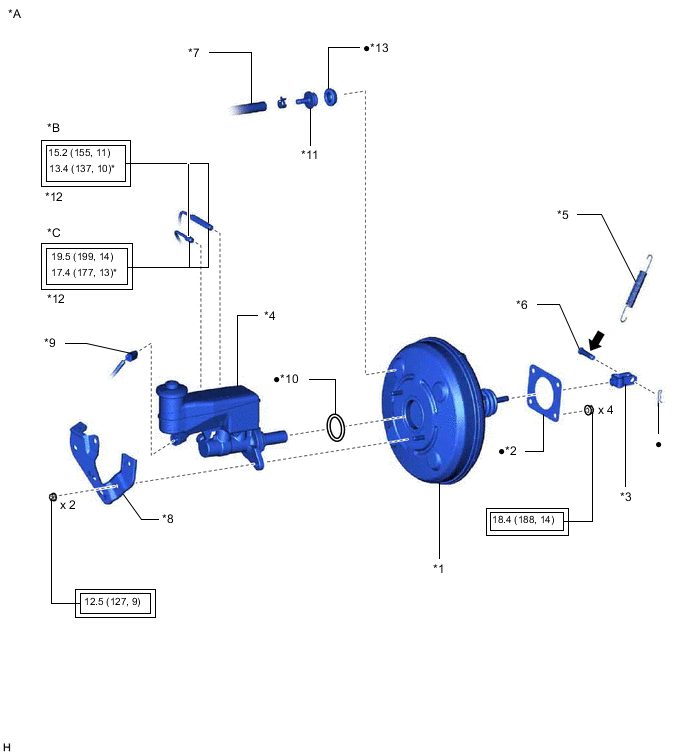

ILLUSTRATION
| *A | for LHD (1GR-FE) | *B | w/o VSC |
| *C | w/ VSC | - | - |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *4 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | PUSH ROD PIN |
| *7 | VACUUM HOSE | *8 | BRAKE BOOSTER TUBE CLAMP BRACKET |
| *9 | BRAKE FLUID WARNING SWITCH CONNECTOR | *10 | O-RING |
| *11 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *12 | BRAKE LINE |
| *13 | GROMMET | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part | |
Lithium soap base glycol grease |

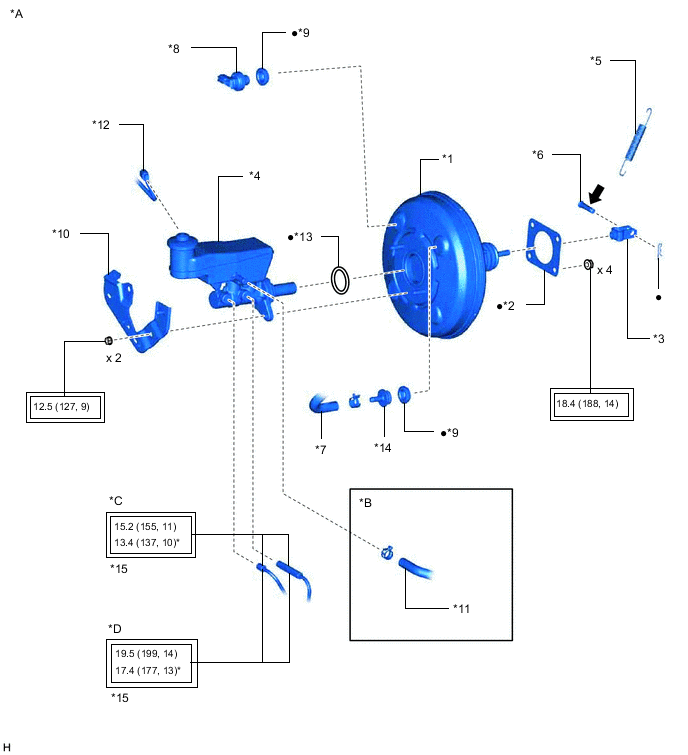

ILLUSTRATION
| *A | for RHD (Diesel Engine) | *B | for Manual Transmission |
| *C | w/o VSC | *D | w/ VSC |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *4 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | PUSH ROD PIN |
| *7 | VACUUM HOSE | *8 | VACUUM WARNING SWITCH ASSEMBLY |
| *9 | GROMMET | *10 | BRAKE BOOSTER TUBE CLAMP BRACKET |
| *11 | CLUTCH RESERVOIR TUBE | *12 | BRAKE FLUID WARNING SWITCH CONNECTOR |
| *13 | O-RING | *14 | BRAKE VACUUM CHECK VALVE ASSEMBLY |
| *15 | BRAKE LINE | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part | |
Lithium soap base glycol grease |

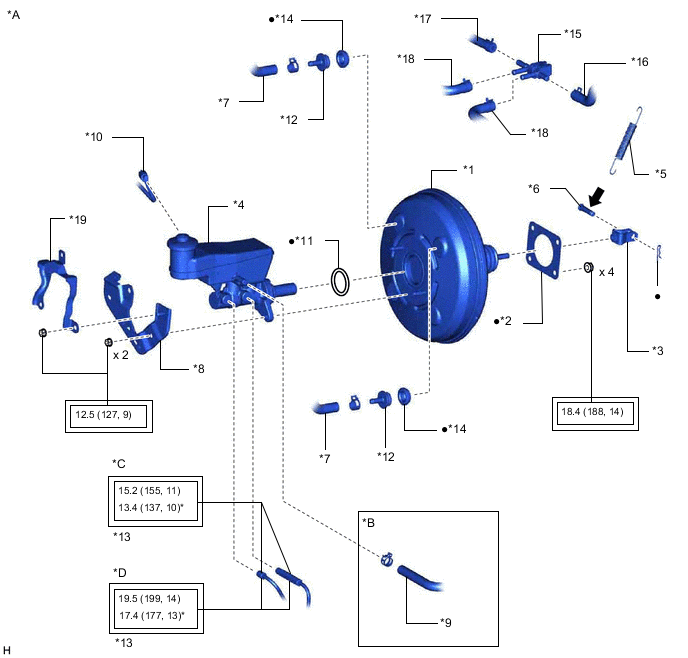

ILLUSTRATION
| *A | for RHD (2TR-FE) | *B | for Manual Transmission |
| *C | w/o VSC | *D | w/ VSC |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *4 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | PUSH ROD PIN |
| *7 | VACUUM HOSE | *8 | BRAKE BOOSTER TUBE CLAMP BRACKET |
| *9 | CLUTCH RESERVOIR TUBE | *10 | BRAKE FLUID WARNING SWITCH CONNECTOR |
| *11 | O-RING | *12 | BRAKE VACUUM CHECK VALVE ASSEMBLY |
| *13 | BRAKE LINE | *14 | GROMMET |
| *15 | BRAKE BOOSTER VACUUM EJECTOR | *16 | NO. 2 AIR HOSE |
| *17 | UNION TO CONNECTOR TUBE HOSE | *18 | VACUUM TUBE CONNECTOR HOSE |
| *19 | RESERVOIR HOSE BRACKET | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part | |
Lithium soap base glycol grease |

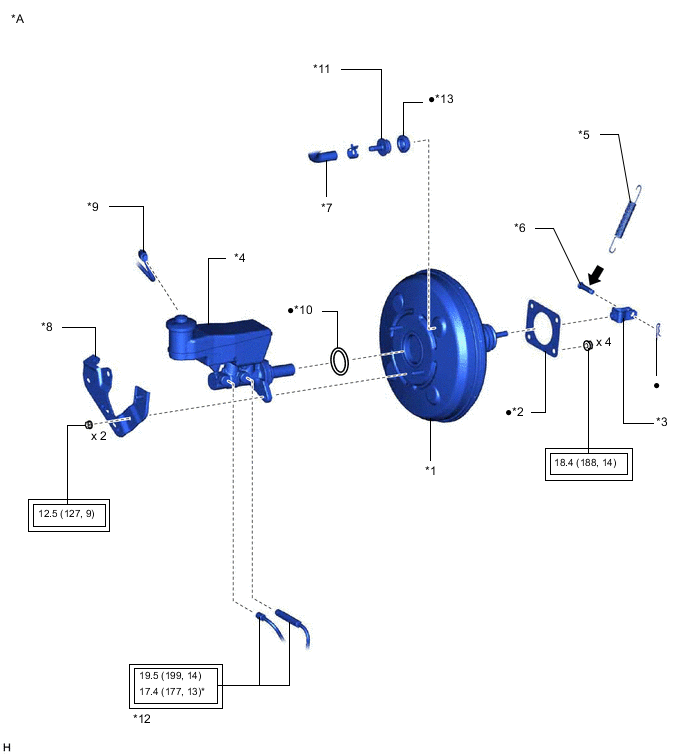

ILLUSTRATION
| *A | for RHD (1GR-FE) | - | - |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *4 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | PUSH ROD PIN |
| *7 | VACUUM HOSE | *8 | BRAKE BOOSTER TUBE CLAMP BRACKET |
| *9 | BRAKE FLUID WARNING SWITCH CONNECTOR | *10 | O-RING |
| *11 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *12 | BRAKE LINE |
| *13 | GROMMET | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with union nut wrench |
| ● | Non-reusable part | |
Lithium soap base glycol grease |
