VACUUM WARNING SWITCH(for Diesel) REMOVAL

PROCEDURE

1. REMOVE VACUUM WARNING SWITCH ASSEMBLY




   1.

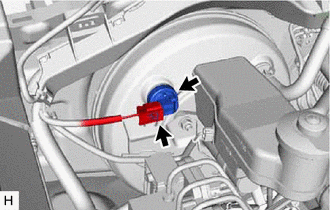

      Disconnect the connector from the vacuum warning switch assembly.

   2. Remove the vacuum warning switch assembly from the brake booster assembly.

2. REMOVE VACUUM WARNING SWITCH GROMMET




   1. Remove the vacuum warning switch grommet from the brake booster assembly.
