BRAKE PEDAL COMPONENTS

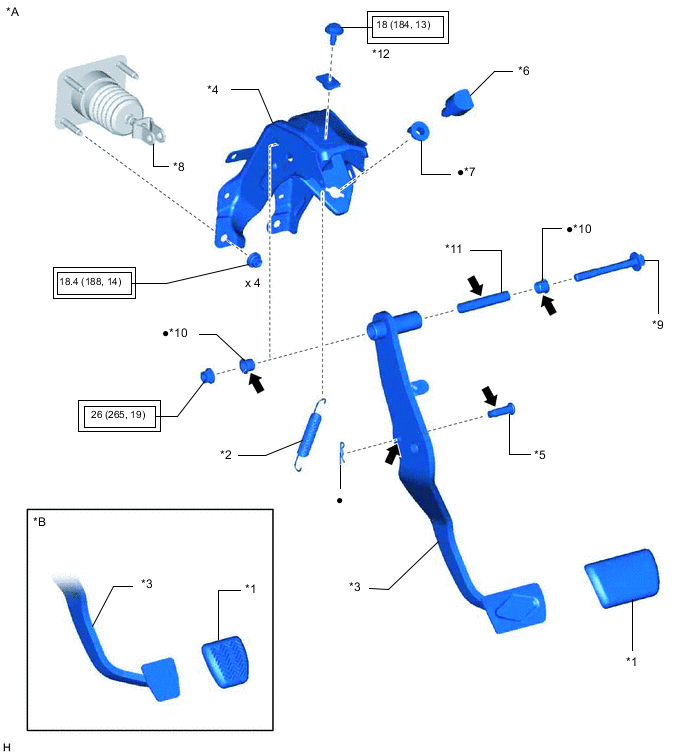

ILLUSTRATION
| *A | for LHD (Automatic Transmission) | *B | for LHD (Manual Transmission) |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUB-ASSEMBLY | *4 | BRAKE PEDAL SUPPORT SUB-ASSEMBLY |
| *5 | PUSH ROD PIN | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | STOP LIGHT SWITCH MOUNTING ADJUSTER | *8 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
| *9 | BRAKE PEDAL SHAFT | *10 | BUSH |
| *11 | BRAKE PEDAL SHAFT COLLAR | *12 | BRAKE PEDAL SUPPORT REINFORCEMENT SET BOLT |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |

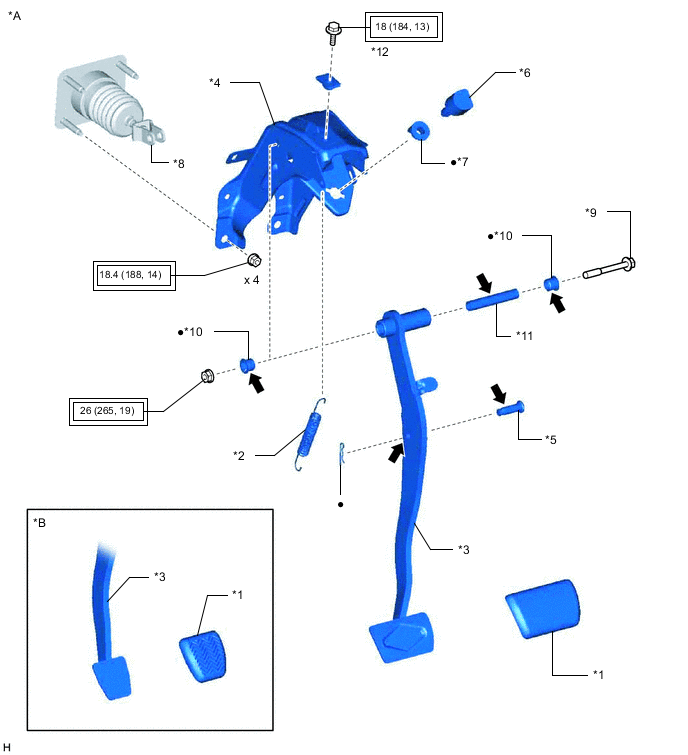

ILLUSTRATION
| *A | for RHD (Automatic Transmission) | *B | for RHD (Manual Transmission) |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUB-ASSEMBLY | *4 | BRAKE PEDAL SUPPORT SUB-ASSEMBLY |
| *5 | PUSH ROD PIN | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | STOP LIGHT SWITCH MOUNTING ADJUSTER | *8 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
| *9 | BRAKE PEDAL SHAFT | *10 | BUSH |
| *11 | BRAKE PEDAL SHAFT COLLAR | *12 | BRAKE PEDAL SUPPORT REINFORCEMENT SET BOLT |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| |
Lithium soap base glycol grease | - | - |
