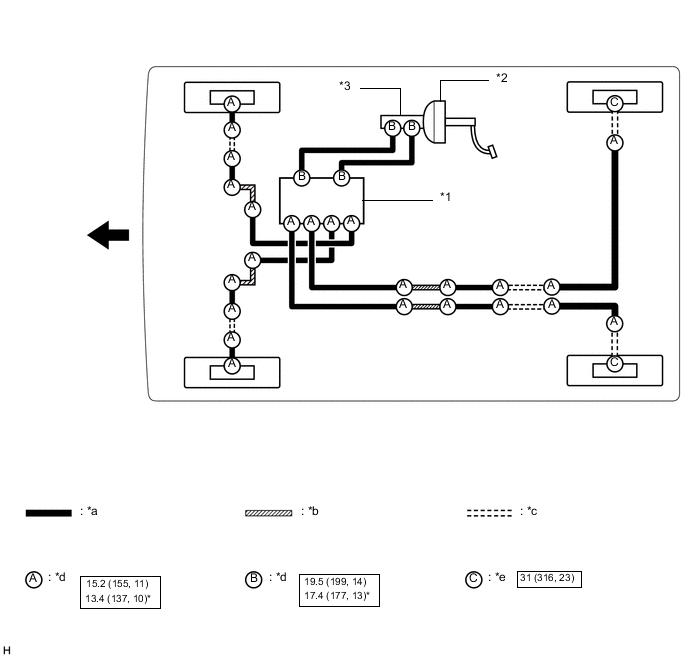

BRAKE LINE SYSTEM DIAGRAM
| *1 | Brake Actuator Assembly | *2 | Brake Booster Assembly |
| *3 | Brake Master Cylinder Sub-assembly | - | - |
| *a | Brake Line | *b | Brake Tube Way |
| *c | Flexible Hose | *d | Union Nut |
| *e | Union Bolt | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
 |
Front | - | - |
