VSC OFF SWITCH COMPONENTS

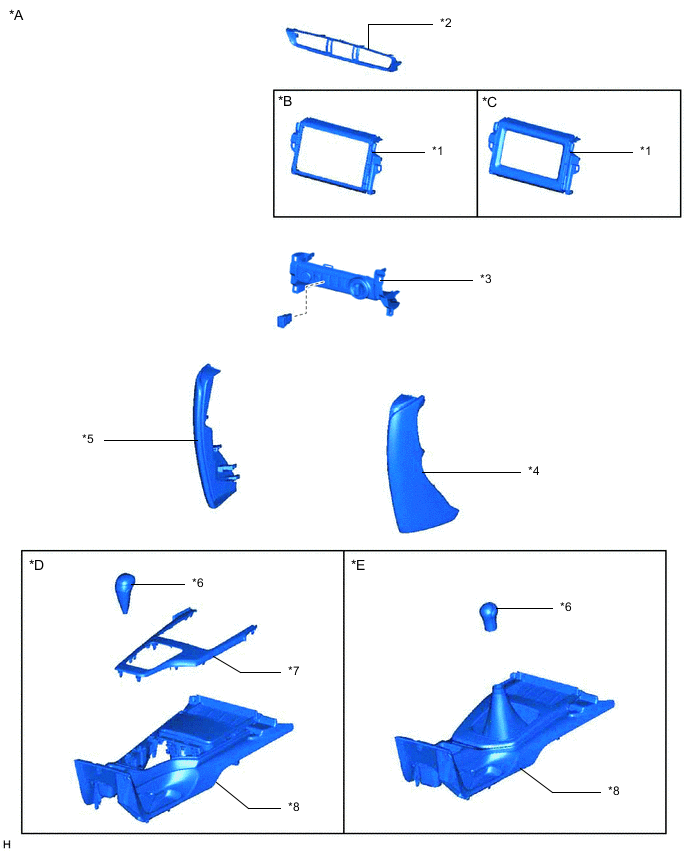

ILLUSTRATION
| *A | for LHD | *B | w/ Audio |
| *C | w/o Audio | *D | for Automatic Transmission |
| *E | for Manual Transmission | - | - |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | INSTRUMENT PANEL REGISTER BEZEL GARNISH |
| *3 | LOWER INSTRUMENT COVER SUB-ASSEMBLY | *4 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *5 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *6 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *7 | SHIFTING HOLE COVER SUB-ASSEMBLY | *8 | UPPER CONSOLE PANEL SUB-ASSEMBLY |
| *9 | VSC OFF SWITCH | - | - |
ILLUSTRATION
| *A | for RHD | *B | w/ Audio |
| *C | w/o Audio | *D | for Automatic Transmission |
| *E | for Manual Transmission | - | - |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | INSTRUMENT PANEL REGISTER BEZEL GARNISH |
| *3 | LOWER INSTRUMENT COVER SUB-ASSEMBLY | *4 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *5 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *6 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *7 | SHIFTING HOLE COVER SUB-ASSEMBLY | *8 | UPPER CONSOLE PANEL SUB-ASSEMBLY |
| *9 | VSC OFF SWITCH | - | - |
