BRAKE ACTUATOR(w/ VSC) DISASSEMBLY

PROCEDURE

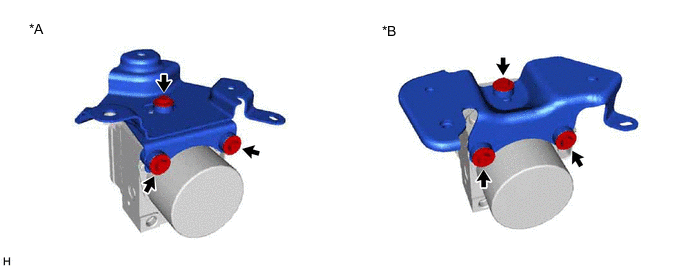

1. REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY




   1. Remove the 3 bolts and brake actuator bracket assembly from the brake actuator assembly.



      *A

      for LHD

      *B

      for RHD

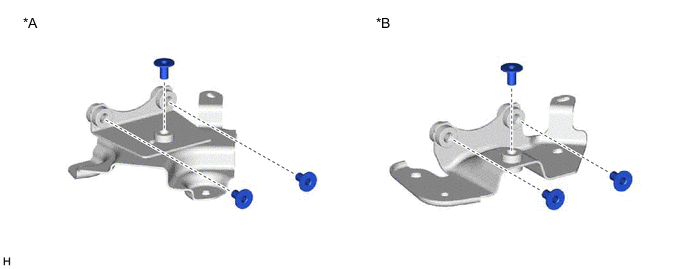

2. REMOVE BRAKE ACTUATOR CASE COLLAR




   1. Remove the 3 brake actuator case collars from the 3 brake actuator bolt cushions.



      *A

      for LHD

      *B

      for RHD

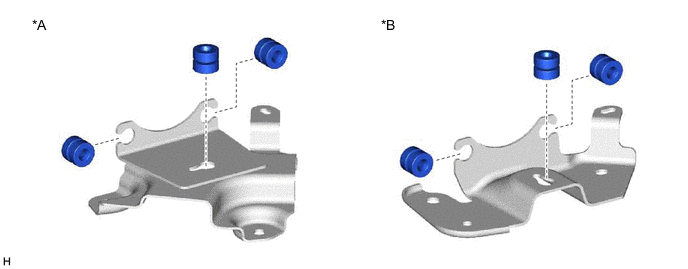

3. REMOVE BRAKE ACTUATOR BOLT CUSHION




   1. Remove the 3 brake actuator bolt cushions from the brake actuator bracket.



      *A

      for LHD

      *B

      for RHD
