DOWNHILL ASSIST CONTROL SWITCH INSTALLATION

PROCEDURE

1. INSTALL DOWNHILL ASSIST CONTROL SWITCH




   1.

      Install in this Direction

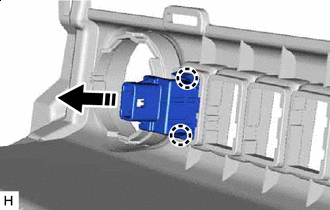

      Attach the 2 claws to install the downhill assist control switch to the lower instrument cover sub-assembly.

   2. Connect the downhill assist control switch connector.

2. INSTALL LOWER INSTRUMENT COVER SUB-ASSEMBLY

   Click here

3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

   Click here

4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

   Click here

5. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Automatic Transmission)

   Click here

6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

   Click here

7. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

   Click here

8. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

   Click here

9. INSTALL INSTRUMENT PANEL REGISTER BEZEL GARNISH

   Click here

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

11. CHECK SRS WARNING LIGHT

    Click here
