VSC OFF SWITCH INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. INSTALL VSC OFF SWITCH

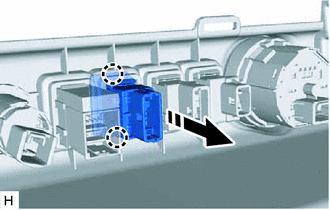

    1. B003P6JC01
      B003OFB Install in this Direction

      for TMEE (AAV) Made:

      Attach the 2 claws to install the VSC OFF switch to the lower instrument cover sub-assembly.

    2. B003RJC

      except TMEE (AAV) Made:

      Attach the 2 claws to install the VSC OFF switch from the upper console panel sub-assembly.

    3. Connect the VSC OFF switch connector.

  2. INSTALL LOWER INSTRUMENT COVER SUB-ASSEMBLY (for TMEE (AAV) Made)

    Click here

  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for TMEE (AAV) Made)

    Click here

  4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Click here

  5. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Automatic Transmission)

    Click here

  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Click here

  7. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Click here

  8. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Click here

  9. INSTALL INSTRUMENT PANEL REGISTER BEZEL GARNISH

    Click here

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  11. CHECK SRS WARNING LIGHT

    Click here
