BRAKE ACTUATOR DISASSEMBLY

PROCEDURE


  1. REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY

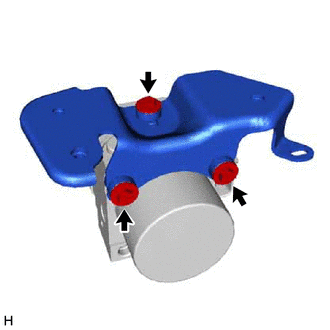

    1. B003LUS

      Remove the 3 bolts and brake actuator bracket assembly from the brake actuator assembly.

  2. REMOVE BRAKE ACTUATOR CASE COLLAR


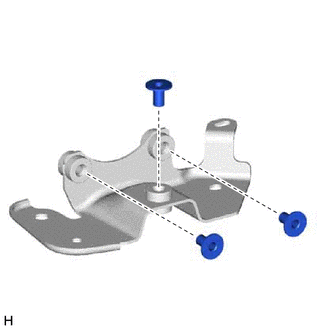

    1. B003MWG

      Remove the 3 brake actuator case collars from the 3 brake actuator bolt cushions.

  3. REMOVE BRAKE ACTUATOR BOLT CUSHION

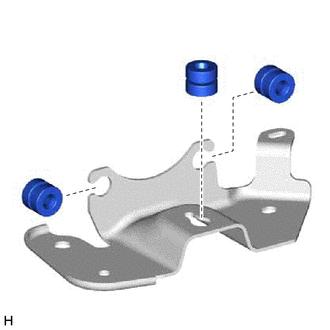

    1. B003J85

      Remove the 3 brake actuator bolt cushions from the brake actuator bracket.
