VEHICLE STABILITY CONTROL SYSTEM PARTS LOCATION

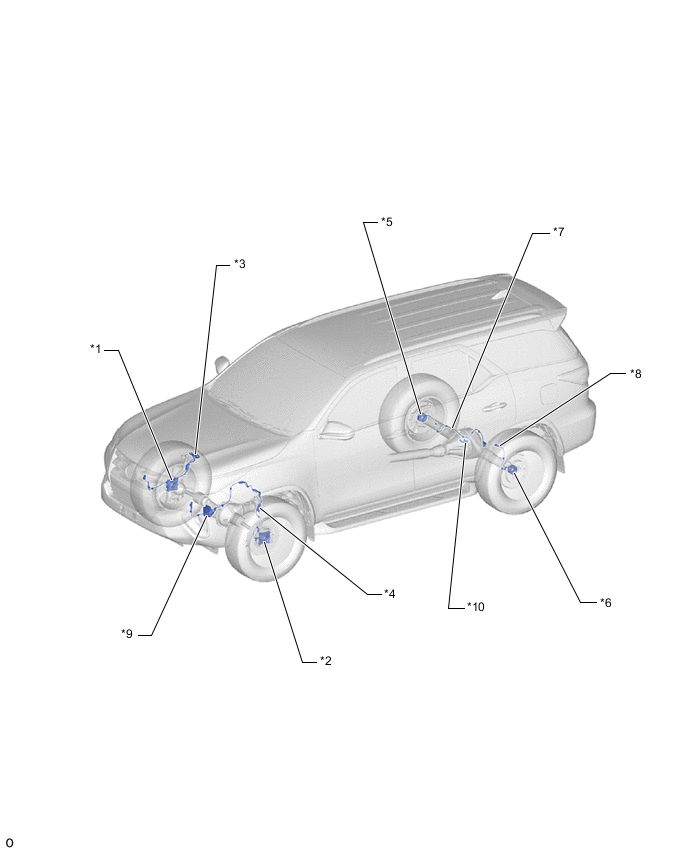

ILLUSTRATION
| *1 | FRONT AXLE HUB INNER BEARING RH - FRONT SKID CONTROL ROTOR RH |
*2 | FRONT AXLE HUB INNER BEARING LH - FRONT SKID CONTROL ROTOR LH |
| *3 | FRONT SPEED SENSOR RH | *4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE SHAFT BEARING RH - REAR SKID CONTROL ROTOR RH |
*6 | REAR AXLE SHAFT BEARING LH - REAR SKID CONTROL ROTOR LH |
| *7 | REAR SPEED SENSOR RH | *8 | REAR SPEED SENSOR LH |
| *9 | DIFFERENTIAL MOTOR ACTUATOR ASSEMBLY - A.D.D. POSITION SWITCH |
*10 | NO. 1 TRANSFER INDICATOR SWITCH - REAR DIFFERENTIAL LOCK POSITION SWITCH |

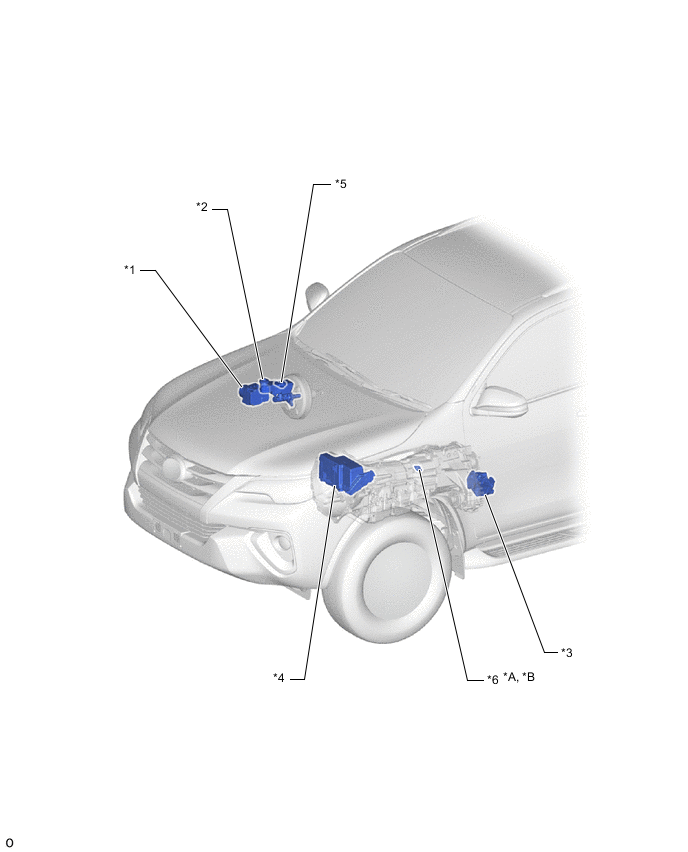

ILLUSTRATION
| *A | w/ Downhill Assist Control | *B | for Manual Transmission |
| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *3 | TRANSFER SHIFT ACTUATOR ASSEMBLY - L4 DETECTION SWITCH |
*4 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - ABS NO. 1 FUSE - ABS NO. 2 FUSE - ECU-B NO. 1 FUSE - STOP FUSE |
| *5 | VACUUM WARNING SWITCH ASSEMBLY | *6 | Neutral Position Switch |

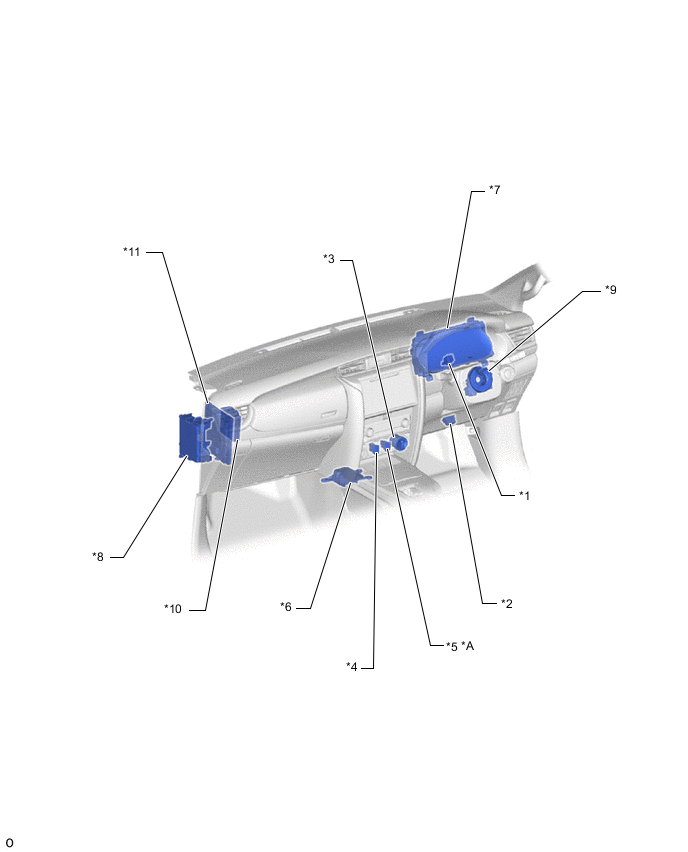

ILLUSTRATION
| *A | w/ Downhill Assist Control | - | - |
| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | TRANSFER POSITION SWITCH - 4WD CONTROL SWITCH |
*4 | VSC OFF SWITCH |
| *5 | DOWNHILL ASSIST CONTROL SWITCH | *6 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *7 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC OFF MESSAGE) - DOWNHILL ASSIST CONTROL INDICATOR LIGHT (w/ Downhill Assist Control) |
*8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE - A/BAG FUSE |
| *9 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - STEERING ANGLE SENSOR |
*10 | 4 WHEEL DRIVE CONTROL ECU |
| *11 | ECM | - | - |
