REAR DIFFERENTIAL LOCK CONTROL SWITCH COMPONENTS

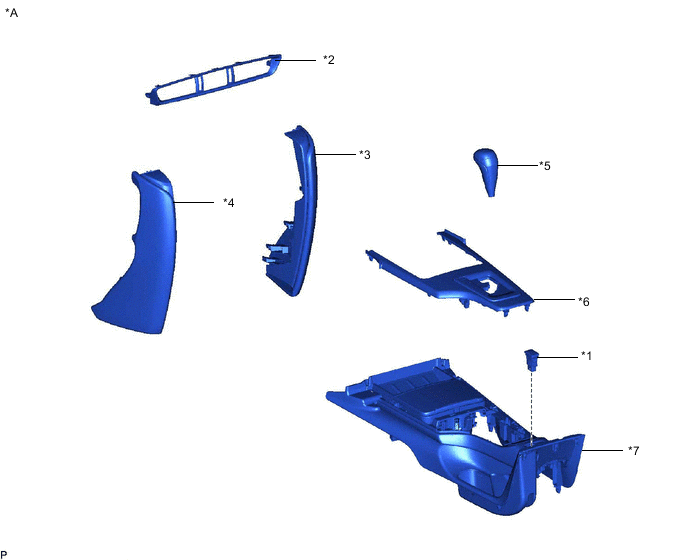

ILLUSTRATION
| *A | for AUTOMATIC TRANSMISSION | - | - |
| *1 | DIFFERENTIAL LOCK SWITCH | *2 | INSTRUMENT PANEL REGISTER BEZEL GARNISH |
| *3 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *4 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *5 | SHIFT LEVER KNOB SUB-ASSEMBLY | *6 | SHIFTING HOLE COVER SUB-ASSEMBLY |
| *7 | UPPER CONSOLE PANEL SUB-ASSEMBLY | - | - |

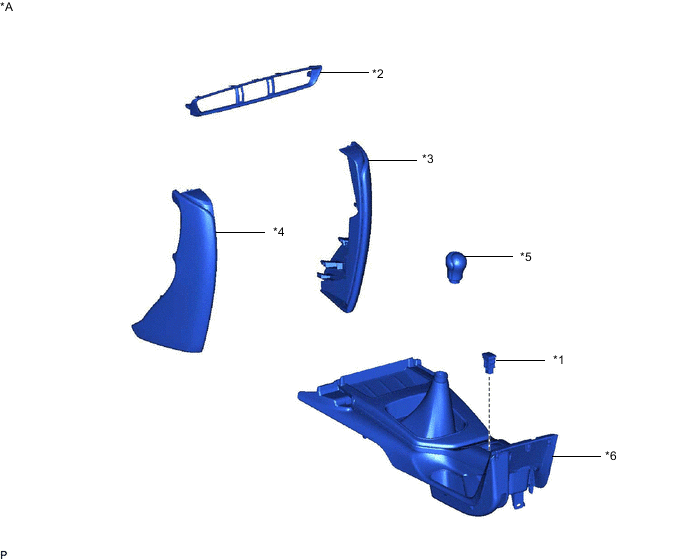

ILLUSTRATION
| *A | for MANUAL TRANSMISSION | - | - |
| *1 | DIFFERENTIAL LOCK SWITCH | *2 | INSTRUMENT PANEL REGISTER BEZEL GARNISH |
| *3 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *4 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *5 | SHIFT LEVER KNOB SUB-ASSEMBLY | *6 | UPPER CONSOLE PANEL SUB-ASSEMBLY |
