REAR BRAKE(except TSAM Made) COMPONENTS

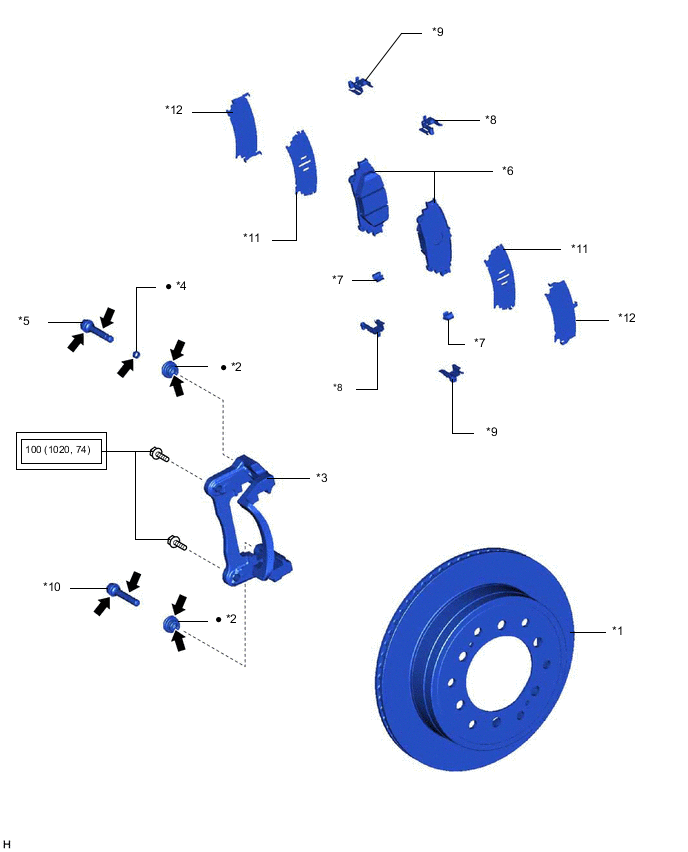

ILLUSTRATION
| *1 | REAR DISC | *2 | REAR DISC BRAKE BUSH DUST BOOT |
| *3 | REAR DISC BRAKE CYLINDER MOUNTING LH | *4 | REAR DISC BRAKE CYLINDER SLIDE BUSH |
| *5 | REAR DISC BRAKE CYLINDER SLIDE PIN | *6 | REAR DISC BRAKE PAD |
| *7 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE | *8 | REAR NO. 1 DISC BRAKE PAD SUPPORT PLATE |
| *9 | REAR NO. 2 DISC BRAKE PAD SUPPORT PLATE | *10 | REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN |
| *11 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *12 | REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |

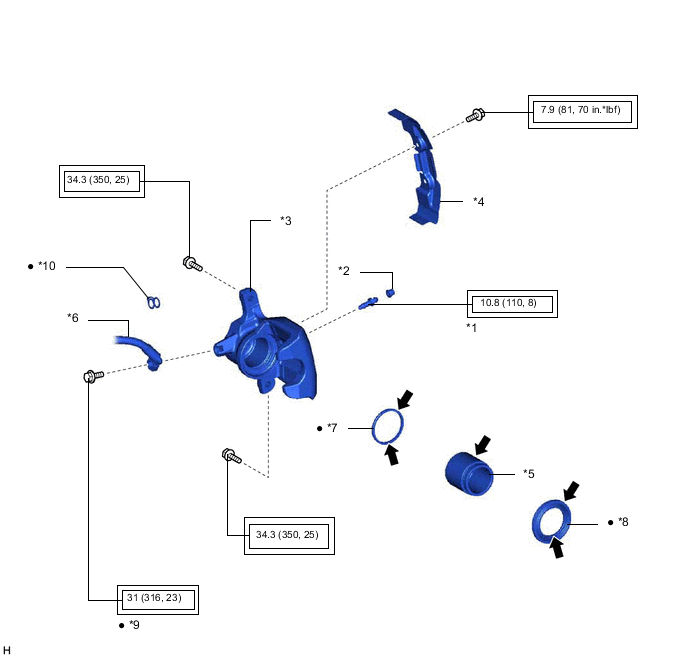

ILLUSTRATION
| *1 | REAR DISC BRAKE BLEEDER PLUG | *2 | REAR DISC BRAKE BLEEDER PLUG CAP |
| *3 | REAR DISC BRAKE CYLINDER ASSEMBLY LH | *4 | REAR DISC BRAKE DUST BOOT PROTECTOR |
| *5 | REAR DISC BRAKE PISTON | *6 | REAR FLEXIBLE HOSE LH |
| *7 | PISTON SEAL | *8 | CYLINDER BOOT |
| *9 | UNION BOLT | *10 | GASKET |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| |
Lithium soap base glycol grease | - | - |
