PARKING BRAKE LEVER INSTALLATION

PROCEDURE

1. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY




   1.

      Pass the No. 1 parking brake cable assembly through the parking brake lever sub-assembly.

   2.

      Temporarily install the adjusting nut to the No. 1 parking brake cable assembly.

   3.

      Install the 2 bolts and 2 nuts in the order shown in the illustration.

      Torque:

      14.5 N*m  { 148 kgf*cm, 11 ft.*lbf }

   4.

      *a	Claw
      	Return

      Return the claw to its original position.

      Tech Tips

      Move the parking brake lever sub-assembly a few times and check for smooth movement.

   5.

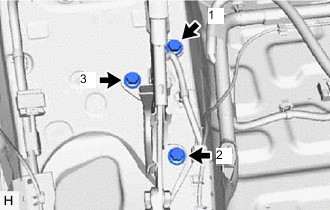

      Install the 3 bolts in the order shown in the illustration.

      Torque:

      12.5 N*m  { 127 kgf*cm, 9 ft.*lbf }

   6. Install the lock nut.

      Tech Tips

      Completely tighten the lock nut when adjusting the parking brake lever travel.

2. INSTALL PARKING BRAKE SWITCH ASSEMBLY

   Click here

3. ADJUST PARKING BRAKE LEVER TRAVEL

   Click here

4. INSTALL CONSOLE BOX ASSEMBLY

   Click here
