PARKING BRAKE CABLE COMPONENTS

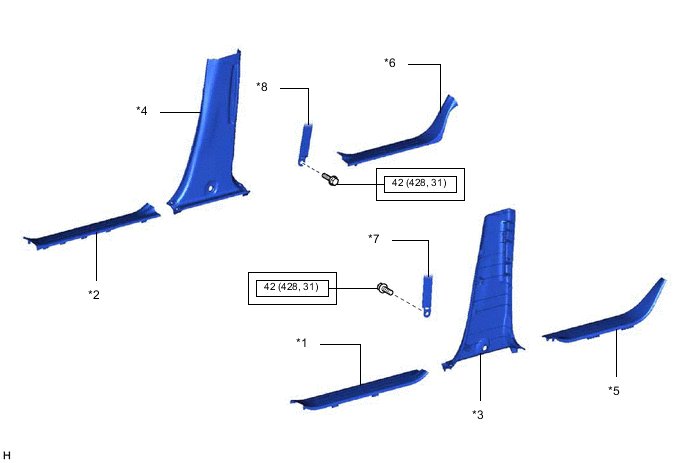

ILLUSTRATION
| *1 | FRONT DOOR SCUFF PLATE LH | *2 | FRONT DOOR SCUFF PLATE RH |
| *3 | LOWER CENTER PILLAR GARNISH LH | *4 | LOWER CENTER PILLAR GARNISH RH |
| *5 | REAR DOOR SCUFF PLATE LH | *6 | REAR DOOR SCUFF PLATE RH |
| *7 | FRONT SEAT OUTER BELT ASSEMBLY LH | *8 | FRONT SEAT OUTER BELT ASSEMBLY RH |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

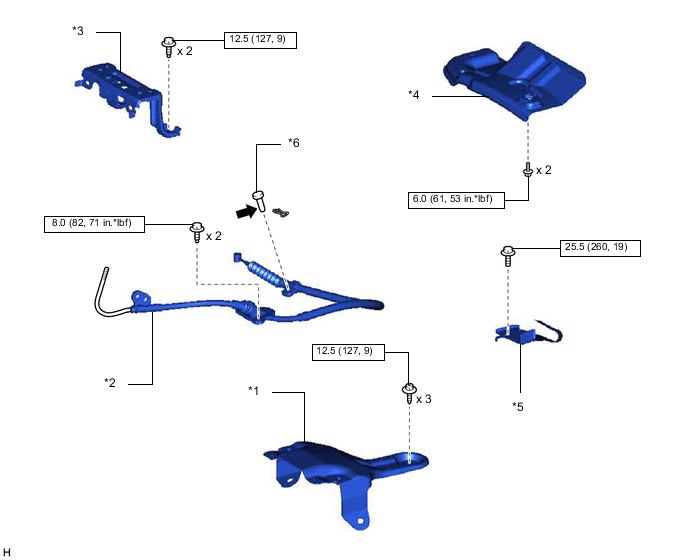

ILLUSTRATION
| *1 | INTERMEDIATE LEVER PROTECTOR | *2 | NO. 1 PARKING BRAKE CABLE ASSEMBLY |
| *3 | NO. 2 CONSOLE BOX MOUNTING BRACKET | *4 | PARKING BRAKE CABLE HEAT INSULATOR |
| *5 | CABLE SUPPORT BRACKET | *6 | PIN |
 |
N*m (kgf*cm, ft.*lbf) : Specified torque |  |
MP grease |

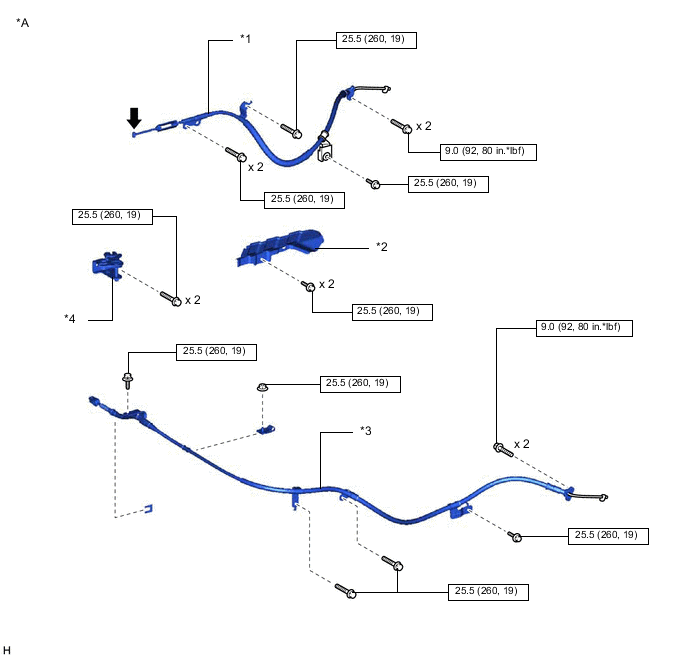

ILLUSTRATION
| *A | for TMEE (AAV) Made | - | - |
| *1 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *2 | NO. 2 PARKING BRAKE CABLE HEAT INSULATOR |
| *3 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *4 | PARKING BRAKE EQUALIZER SUB-ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf) : Specified torque | |
MP grease |

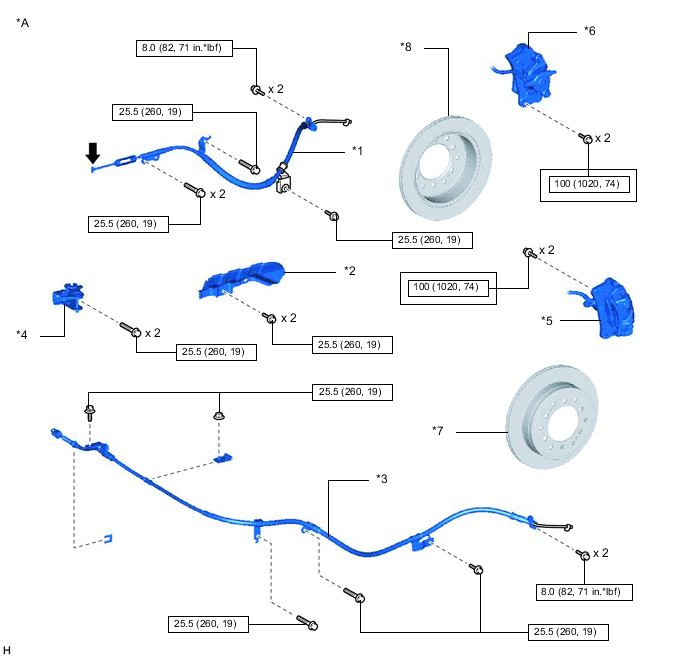

ILLUSTRATION
| *A | except TMEE (AAV) Made | - | - |
| *1 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *2 | NO. 2 PARKING BRAKE CABLE HEAT INSULATOR |
| *3 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *4 | PARKING BRAKE EQUALIZER SUB-ASSEMBLY |
| *5 | REAR DISC BRAKE CYLINDER ASSEMBLY LH | *6 | REAR DISC BRAKE CYLINDER ASSEMBLY RH |
| *7 | REAR DISC LH | *8 | REAR DISC RH |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf) : Specified torque |
| |
MP grease | - | - |
