МЕХАНИЧЕСКАЯ ТРАНСМИССИЯ В СБОРЕ УЗЛЫ И ДЕТАЛИ
ILLUSTRATION

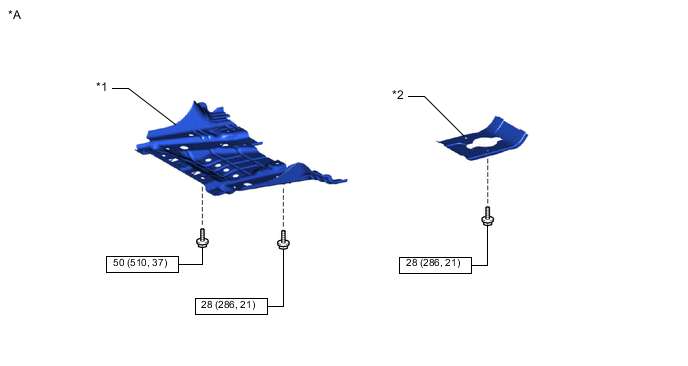

| *A | for 2WD | - | - |
| *1 | NO. 1 ENGINE UNDER COVER | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

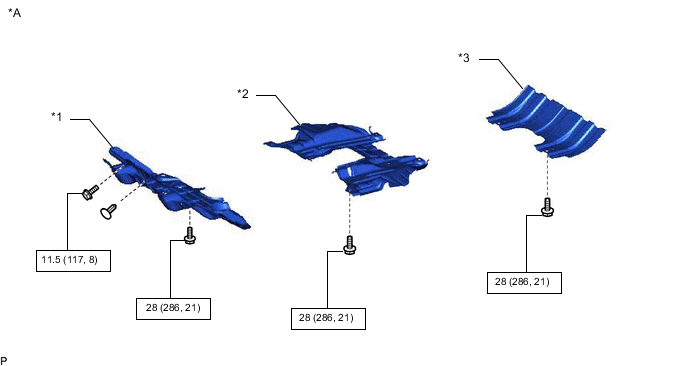

| *A | for Pre-Runner | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | NO. 2 ENGINE UNDER COVER |
| *3 | NO. 3 ENGINE UNDER COVER SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

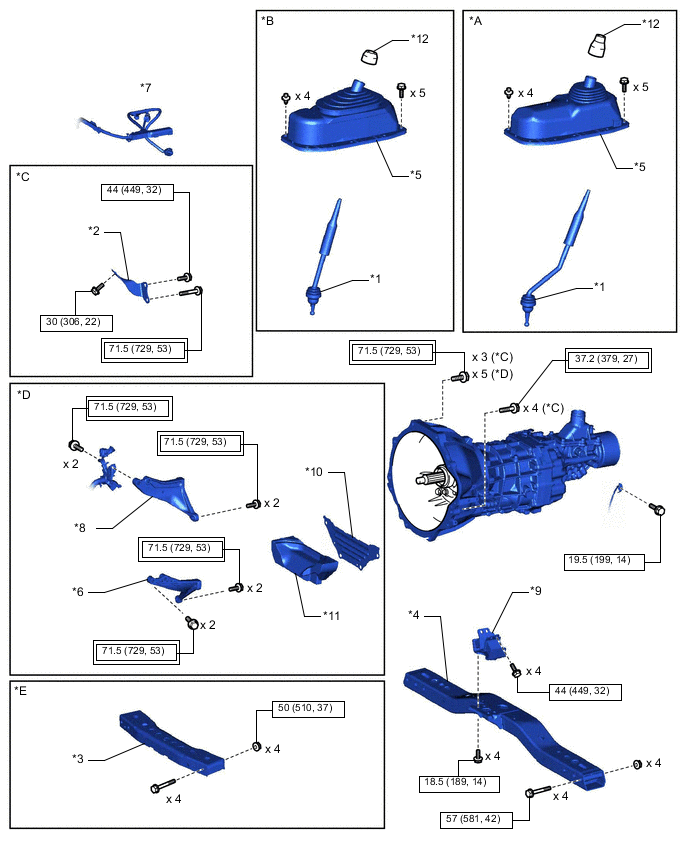

ILLUSTRATION
| *A | w/ Console Box Lid | *B | w/o Console Box Lid |
| *C | for 1TR-FE, 2TR-FE | *D | except 1TR-FE, 2TR-FE |
| *E | for 2WD | - | - |
| *1 | FLOOR SHIFT SHIFT LEVER ASSEMBLY | *2 | MANIFOLD STAY |
| *3 | NO. 2 FRAME CROSSMEMBER SUB-ASSEMBLY | *4 | NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY |
| *5 | SHIFT LEVER BOOT ASSEMBLY | *6 | STIFFENER PLATE LH |
| *7 | WIRE HARNESS | *8 | STIFFENER PLATE RH |
| *9 | REAR ENGINE MOUNTING INSULATOR | *10 | NO. 2 REAR END PLATE |
| *11 | NO. 4 CYLINDER BLOCK INSULATOR | *12 | SHIFT LEVER COVER |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping":N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION
| *A | except 1TR-FE, 2TR-FE | - | - |
| *1 | MANUAL TRANSMISSION UNIT ASSEMBLY | *2 | TRANSMISSION BREATHER SUB-ASSEMBLY |
| *3 | WIRE HARNESS CLAMP BRACKET | *4 | TRANSMISSION BREATHER BRACKET |
| *5 | CLAMP | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
