МАСЛЯНЫЙ НАСОС СНЯТИЕ

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the throttle body with motor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effects/Inoperative when not Performed Link
Replacement of throttle body with motor assembly Inspection After Repair Poor idle, engine start, etc.

Click here

Cleaning the deposits from the throttle body with motor assembly

PROCEDURE


  1. REMOVE ENGINE ASSEMBLY

    Click here

  2. INSTALL ENGINE TO ENGINE STAND

    Click here

  3. REMOVE IGNITION COIL ASSEMBLY

    Click here

  4. REMOVE SPARK PLUG

    Click here

  5. REMOVE PCV PIPE

    Click here

  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Click here

  7. REMOVE FUEL DELIVERY PIPE

    Click here

  8. REMOVE FUEL INJECTOR ASSEMBLY

    Click here

  9. REMOVE INTAKE MANIFOLD

    Click here

  10. REMOVE GENERATOR ASSEMBLY

    Click here

  11. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

    Click here

  12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Click here

  13. REMOVE WATER INLET

    Click here

  14. REMOVE THERMOSTAT

    Click here

  15. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY

    Click here

  16. REMOVE NO. 1 WATER BY-PASS PIPE

    Click here

  17. REMOVE OIL FILLER CAP SUB-ASSEMBLY

    Click here

  18. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

    Click here

  19. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

    Click here

  20. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)

    Click here

  21. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY


    1. A01WBAW

      Remove the 21 bolts, 2 nuts, 2 plate washers, 2 seal washers and cylinder head cover sub-assembly.

    2. Remove the cylinder head cover gasket from the cylinder head cover sub-assembly.

    3. Remove the No. 1 camshaft bearing cap oil hole gasket from the cylinder head cover connector sub-assembly.

  22. REMOVE CRANKSHAFT PULLEY


    1. A01WA2LC01
      *a Hold
      B0027PX Turn

      Using SST, hold the crankshaft pulley and loosen the crankshaft pulley set bolt until 2 or 3 threads are screwed into the crankshaft.

      SST
      09213-54015   ( 91651-60855 )
      09330-00021
    2. A01WAKAN01

      Using SST and the crankshaft pulley set bolt, remove the crankshaft pulley.

      SST
      09950-50013   ( 09951-05010, 09952-05010, 09953-05010, 09954-05021 )

      Tech Tips

      Apply lubricant to the threads and end of SST.

  23. REMOVE OIL PAN COVER SILENCER


    1. Remove the 4 No. 1 oil pan plugs and oil pan cover silencer.

  24. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY


    1. Remove the oil pan drain plug and gasket.

    2. A01WACC

      Remove the 16 bolts, 4 adjusting screws and 2 nuts.

    3. A01W9V5

      Insert the blade of an oil pan seal cutter between the oil pan sub-assembly and No. 2 oil pan sub-assembly. Cut through the applied sealer and remove the No. 2 oil pan sub-assembly.

      Note

      Be careful not to damage the contact surfaces of the oil pan sub-assembly and No. 2 oil pan sub-assembly.

  25. REMOVE OIL STRAINER SUB-ASSEMBLY


    1. A01W8LS

      Remove the 2 bolts, nut, oil strainer sub-assembly and gasket.

  26. REMOVE OIL PAN SUB-ASSEMBLY


    1. A01WBCE

      Remove the 16 bolts and 2 nuts.

    2. A01WBD4C01
      *a Protective Tape

      Remove the oil pan sub-assembly by prying between the oil pan sub-assembly and cylinder block sub-assembly with a screwdriver.

      Note

      Be careful not to damage the contact surfaces of the cylinder block sub-assembly and oil pan sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

  27. REMOVE CRANKSHAFT POSITION SENSOR

    Click here

  28. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY

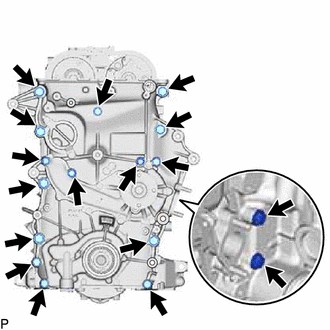

    1. A01W9GV

      Remove the 16 bolts and nut shown in the illustration.

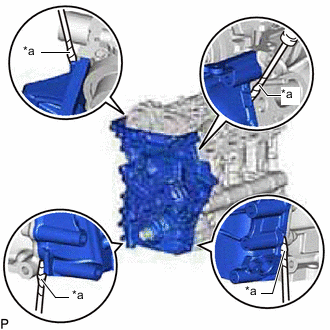

    2. A01W9X8C01
      *a Protective Tape

      Remove the timing chain cover sub-assembly by prying between the timing chain cover sub-assembly and cylinder head sub-assembly or cylinder block sub-assembly with a screwdriver.

      Note

      Be careful not to damage the contact surfaces of the cylinder head sub-assembly, cylinder block sub-assembly and timing chain cover sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

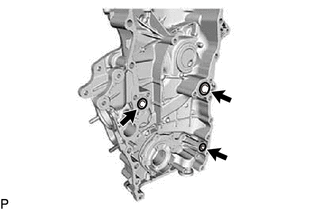

    3. A01W9RB

      Remove the 3 O-rings.

  29. REMOVE ENGINE WATER PUMP ASSEMBLY


    1. A01WBGF

      Remove the 8 bolts, engine water pump assembly and gasket.

  30. REMOVE TIMING CHAIN CASE OIL SEAL


    1. A01W9CCC01
      *a Protective Tape
      *b Wooden Block

      Place the timing chain cover sub-assembly on wooden blocks.

    2. Using a screwdriver, pry out the timing chain case oil seal.

      Tech Tips

      Tape the screwdriver tip before use.
