РАСПРЕДВАЛ УЗЛЫ И ДЕТАЛИ
ILLUSTRATION

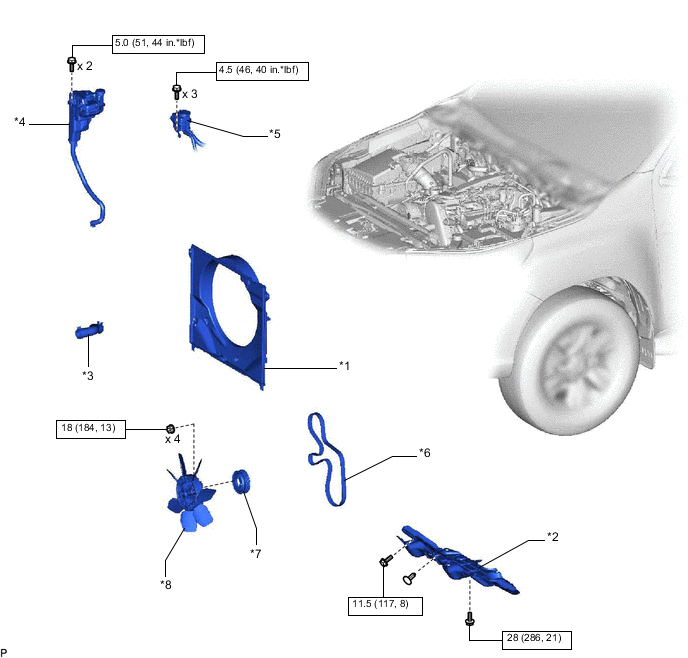

| *1 | FAN SHROUD | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *3 | NO. 1 RADIATOR HOSE | *4 | RADIATOR RESERVE TANK ASSEMBLY |
| *5 | OIL RESERVOIR | *6 | FAN AND GENERATOR V BELT |
| *7 | FAN PULLEY | *8 | FLUID COUPLING WITH FAN |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 INTAKE PIPE | *2 | NO. 1 AIR HOSE |
| *3 | NO. 2 AIR HOSE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1, NO. 2 AND NO. 3 INJECTION PIPE SUB-ASSEMBLY | *2 | NO. 2 NOZZLE LEAKAGE PIPE ASSEMBLY |
| *3 | NO. 4 INJECTION PIPE SUB-ASSEMBLY | *4 | INJECTION PIPE CLAMP |
| *5 | NO. 2 INJECTION PIPE CLAMP | *6 | NO. 3 INJECTION PIPE CLAMP |
| *7 | VENTILATION HOSE | *8 | GASKET |
| *9 | UNION BOLT | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with union nut wrench | ● | Non-reusable part |
ILLUSTRATION
| *1 | NO. 1 TIMING BELT COVER | *2 | NO. 1 TIMING BELT IDLER SUB-ASSEMBLY |
| *3 | TIMING BELT | *4 | TIMING BELT IDLER SHAFT |
| *5 | TIMING BELT IDLER SPACER | *6 | NO. 1 TIMING BELT TENSIONER ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | CAMSHAFT TIMING PULLEY | *2 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *3 | INJECTOR ASSEMBLY | *4 | NO. 2 TIMING BELT COVER |
| *5 | OIL FILLER CAP SUB-ASSEMBLY | *6 | NOZZLE HOLDER SEAL |
| *7 | CYLINDER HEAD COVER GASKET | *8 | NO. 3 CYLINDER HEAD COVER GASKET |
| *9 | UNION BOLT | *10 | INJECTOR HOLLOW SCREW |
| *11 | GASKET | *12 | NOZZLE LEAKAGE PIPE ASSEMBLY |
| *13 | WASHER | *14 | KEY |
| *15 | NO. 1 NOZZLE HOLDER CLAMP | *16 | O-RING |
| *17 | INJECTION NOZZLE SEAT | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | ★ | Precoated part |
ILLUSTRATION
| *1 | EXHAUST CAMSHAFT SUB-ASSEMBLY | *2 | INTAKE CAMSHAFT SUB-ASSEMBLY |
| *3 | NO. 1 CAMSHAFT BEARING CAP | *4 | NO. 2 CAMSHAFT BEARING CAP |
| *5 | NO. 3 CAMSHAFT BEARING CAP | *6 | CAMSHAFT OIL SEAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |
