FOG LIGHT ASSEMBLY(for LED Type) INSPECTION

PROCEDURE


  1. INSPECT FOG LIGHT ASSEMBLY LH

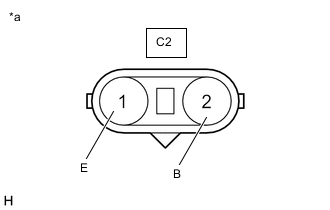

    1. A01IEYCC03
      *a

      Component without harness connected

      (Fog Light Assembly LH)

      Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → C2-2 (B)

      Battery negative (-) → C2-1 (E)

      		 Illuminates

      If the result is not as specified, replace the fog light assembly LH.

  2. INSPECT FOG LIGHT ASSEMBLY RH


    1. A01IEYCC04
      *a

      Component without harness connected

      (Fog Light Assembly RH)

      Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → C1-2 (B)

      Battery negative (-) → C1-1 (E)

      		 Illuminates

      If the result is not as specified, replace the fog light assembly RH.
