HEADLIGHT ASSEMBLY(for ALPHARD) COMPONENTS
ILLUSTRATION

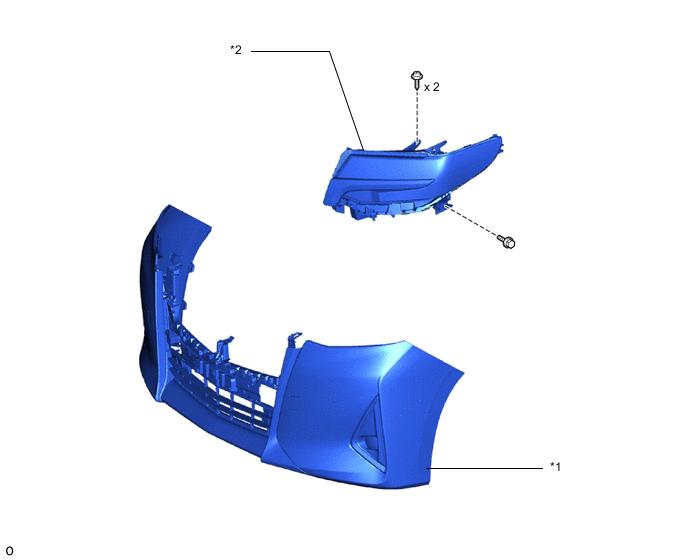

| *1 | FRONT BUMPER ASSEMBLY | *2 | HEADLIGHT ASSEMBLY LH |
ILLUSTRATION

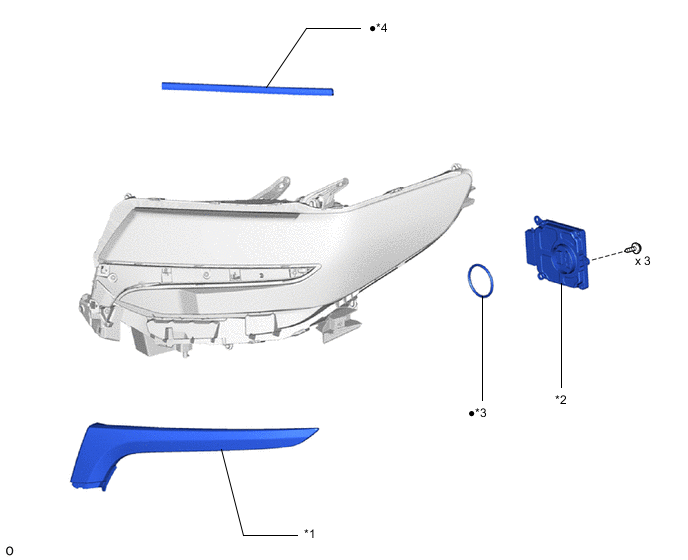

| *1 | HEADLIGHT COVER LH | *2 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *3 | HEADLIGHT GASKET | *4 | HEADLIGHT PROTECTOR LH |
| ● | Non-reusable part | - | - |
ILLUSTRATION

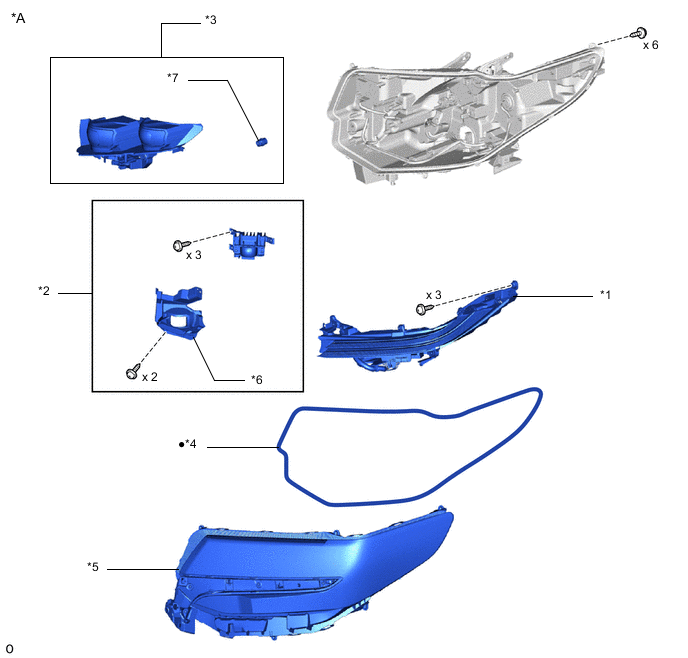

| *A | w/o Cornering Light | - | - |
| *1 | HEADLIGHT CLEARANCE LED SOCKET | *2 | HEADLIGHT CLEARANCE LED UNIT LH |
| *3 | HEADLIGHT LED UNIT ASSEMBLY LH | *4 | HEADLIGHT LENS GASKET |
| *5 | HEADLIGHT LENS LH | *6 | HEADLIGHT TURN SIGNAL LED SOCKET |
| *7 | PIVOT COLLAR | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION

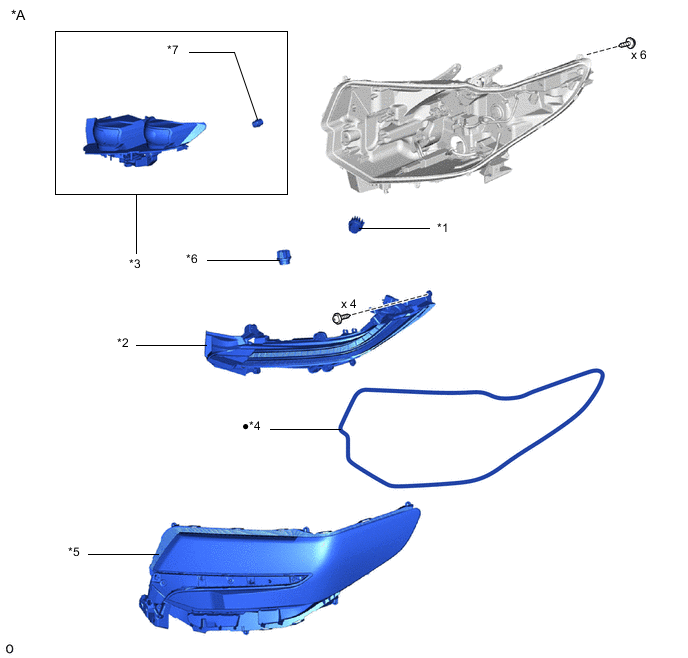

| *A | w/ Cornering Light | - | - |
| *1 | HEADLIGHT CLEARANCE LED UNIT LH | *2 | HEADLIGHT CORNERING LED UNIT LH |
| *3 | HEADLIGHT LED UNIT ASSEMBLY LH | *4 | HEADLIGHT LENS GASKET |
| *5 | HEADLIGHT LENS LH | *6 | CORNERING LIGHT UNIT BEZEL |
| *7 | PIVOT COLLAR | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION

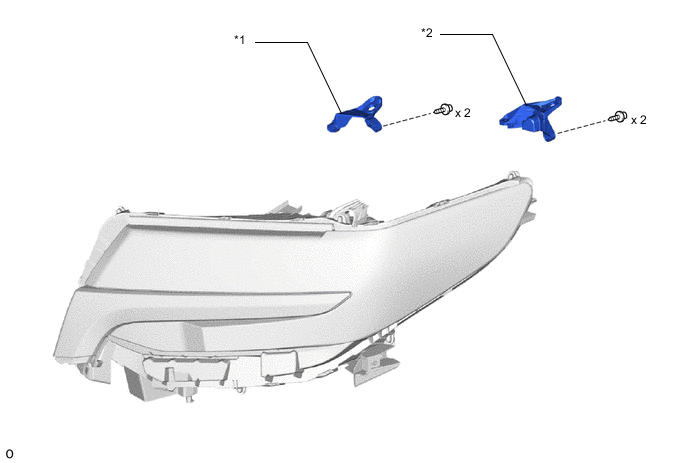

| *1 | UPPER HEADLIGHT PROTECTOR RETAINER LH | *2 | UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER LH |
