AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM, Diagnostic DTC:B2415

DTC Code DTC Name
B2415 Vehicle Speed Sensor Malfunction

DESCRIPTION

The headlight ECU sub-assembly LH receives speed signals from the brake actuator assembly (skid control ECU) via CAN communication and performs light control.

The headlight ECU sub-assembly LH outputs DTC B2415.

DTC No. Detection Item DTC Detection Condition Trouble Area
B2415 Vehicle Speed Sensor Malfunction Malfunction in vehicle speed signal

  • Vehicle stability control system

  • Headlight ECU sub-assembly LH

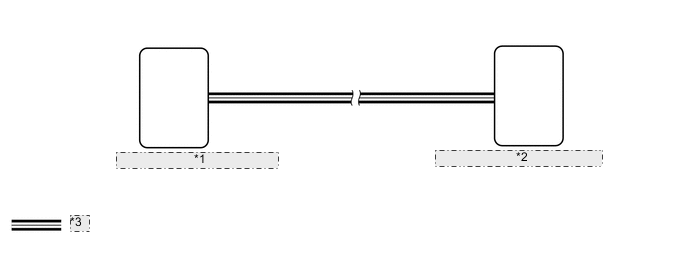

WIRING DIAGRAM

B006KLEE11
*1 Brake Actuator Assembly (Skid Control ECU)
*2 Headlight ECU Sub-assembly LH
*3 CAN Communication Line

CAUTION / NOTICE / HINT

Note


  • First perform the communication function inspections in How to Proceed with Troubleshooting to confirm that there are no CAN communication malfunctions before troubleshooting this DTC.

    Click here

  • After the headlight ECU sub-assembly LH is replaced, vehicle information registration and initialization are necessary.

    Click here

PROCEDURE


  1. CHECK FOR DTC


    1. Clear the DTCs.

      Click here


      Body Electrical > HL AutoLeveling > Clear DTCs

    2. Turn the engine switch on (IG) and wait for at least 10 seconds or more.

    3. Check for DTCs.

      Click here


      Body Electrical > HL AutoLeveling > Trouble Codes
      OK
      DTC B2415 is not output.
      Result
      Proceed to
      OK
      NG

    OK

    USE SIMULATION METHOD TO CHECK Click here

    NG

  2. CHECK FOR DTC (VEHICLE STABILITY CONTROL SYSTEM)


    1. Check for DTCs.

      Click here


      Chassis > ABS/VSC/TRC > Trouble Codes
      OK
      Vehicle stability control system DTCs are not output.
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH Click here

    NG

    GO TO VEHICLE STABILITY CONTROL SYSTEM Click here
