LIGHTING SYSTEM, Diagnostic DTC:B242E

DTC Code DTC Name
B242E Open in IG Circuit

DESCRIPTION

This DTC is output when there is a problem in the power supply for the headlight light control ECU sub-assembly LH (main) or headlight light control ECU sub-assembly RH (sub).

The headlight light control ECU sub-assembly LH (main) outputs DTC B242E.

DTC No. Detection Item DTC Detection Condition Trouble Area
B242E Open in IG Circuit IG circuit malfunction in the headlight light control ECU sub-assembly LH (main) or headlight light control ECU sub-assembly RH (sub).

  • Headlight light control ECU sub-assembly LH (main)

  • Headlight light control ECU sub-assembly RH (sub)

  • Harness or connector

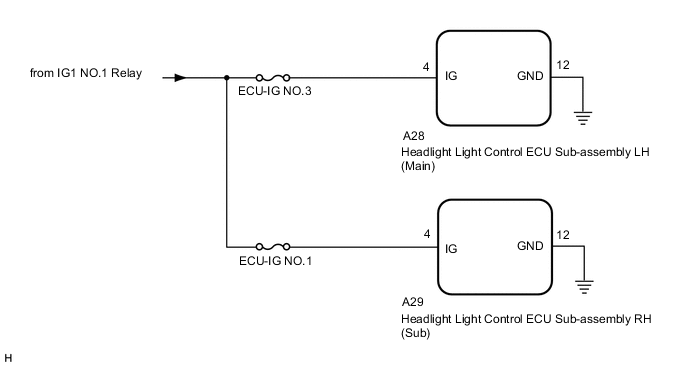

WIRING DIAGRAM

A01UDOPE02

CAUTION / NOTICE / HINT

Note


  • Inspect the fuses for circuits related to this system before performing the following procedure.

  • After the headlight light control ECU sub-assembly LH (main) is replaced, vehicle information registration and initialization are necessary.

    Click here

PROCEDURE


  1. CLEAR DTC


    1. Clear the DTCs.

      Click here


      Body Electrical > HL AutoLeveling > Clear DTCs
      Result
      Proceed to
      NEXT

    NEXT

  2. CHECK FOR DTC


    1. Turn the engine switch on (IG).

    2. Turn on the headlights using the headlight dimmer switch.

    3. Check for DTCs.

      Click here


      Body Electrical > HL AutoLeveling > Trouble Codes
      Result
      Proceed to
      DTC B242E output does not occur
      DTC B242E output occurs

    DTC B242E output does not occur

    USE SIMULATION METHOD TO CHECK Click here

    DTC B242E output occurs

  3. CHECK HARNESS AND CONNECTOR (HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY - BATTERY AND BODY GROUND)

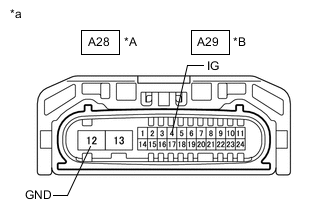

    1. B006L4FC15
      *A Headlight Light Control ECU Sub-assembly LH (Main)
      *B Headlight Light Control ECU Sub-assembly RH (Sub)
      *a

      Front view of wire harness connector

      (to Headlight Light Control ECU Sub-assembly)

      Disconnect the headlight light control ECU sub-assembly LH (main) and headlight light control ECU sub-assembly RH (sub) connectors.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Headlight Light Control ECU Sub-assembly LH (Main)
      Tester Connection Switch Condition Specified Condition
      A28-4 (IG) - Body ground Engine switch off Below 1 V
      A28-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      Headlight Light Control ECU Sub-assembly RH (Sub)
      Tester Connection Switch Condition Specified Condition
      A29-4 (IG) - Body ground Engine switch off Below 1 V
      A29-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Headlight Light Control ECU Sub-assembly LH (Main)
      Tester Connection Condition Specified Condition
      A28-12 (GND) - Body ground Always Below 1 Ω
      Headlight Light Control ECU Sub-assembly RH (Sub)
      Tester Connection Condition Specified Condition
      A29-12 (GND) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. REPLACE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH (SUB)


    1. Temporarily replace the headlight light control ECU sub-assembly RH (sub) with a new or normally functioning one.

      Click here

      Result
      Proceed to
      NEXT

    NEXT

  5. CLEAR DTC


    1. Clear the DTCs.

      Click here


      Body Electrical > HL AutoLeveling > Clear DTCs
      Result
      Proceed to
      NEXT

    NEXT

  6. CHECK FOR DTC


    1. Turn the engine switch on (IG).

    2. Turn on the headlights using the headlight dimmer switch.

    3. Check for DTCs.

      Click here


      Body Electrical > HL AutoLeveling > Trouble Codes
      Result
      Proceed to
      DTC B242E output does not occur
      DTC B242E output occurs

    DTC B242E output does not occur

    END (HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH [SUB] WAS DEFECTIVE)

    DTC B242E output occurs

    REPLACE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH (MAIN) Click here
