LIGHTING SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | for ALPHARD | *B | for VELLFIRE |
| *C | for 2AR-FE | - | - |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *6 | FOG LIGHT ASSEMBLY LH |
| *7 | FOG LIGHT ASSEMBLY RH | *8 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *9 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *10 | ECM |
| *11 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LED UNIT ASSEMBLY LH - HEADLIGHT CLEARANCE LED UNIT LH (w/ Cornering Light) - HEADLIGHT CLEARANCE LED SOCKET LH (w/o Cornering Light) - HEADLIGHT CORNERING LED UNIT LH (w/ Cornering Light) |
*12 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LED UNIT ASSEMBLY RH - HEADLIGHT CLEARANCE LED UNIT RH (w/ Cornering Light) - HEADLIGHT CLEARANCE LED SOCKET RH (w/o Cornering Light) - HEADLIGHT CORNERING LED UNIT RH (w/ Cornering Light) |
| *13 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LED UNIT ASSEMBLY LH - HEADLIGHT CLEARANCE LED UNIT LH - HEADLIGHT CORNERING LED UNIT LH (w/ Cornering Light) |
*14 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LED UNIT ASSEMBLY RH - HEADLIGHT CLEARANCE LED UNIT RH - HEADLIGHT CORNERING LED UNIT RH (w/ Cornering Light) |
| *15 | NO. 1 ENGINE ROOM RELAY BLOCK - ECU-B NO.1 FUSE - J/B ALT FUSE - H-LP LH FUSE (for 2AR-FE) - H-LP LH RELAY (for 2AR-FE) |
*16 | NO. 2 ENGINE ROOM RELAY BLOCK - STOP FUSE - H-LP RH FUSE - H-LP RH RELAY - FOG FR RELAY (for 2GR-FKS) - FOG FR FUSE (for 2GR-FKS) - H-LP LH RELAY (for 2GR-FKS) - H-LP LH FUSE (for 2GR-FKS) |
| *17 | NO. 1 INTEGRATION RELAY - FOG FR FUSE - FR FOG RELAY |
*18 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |

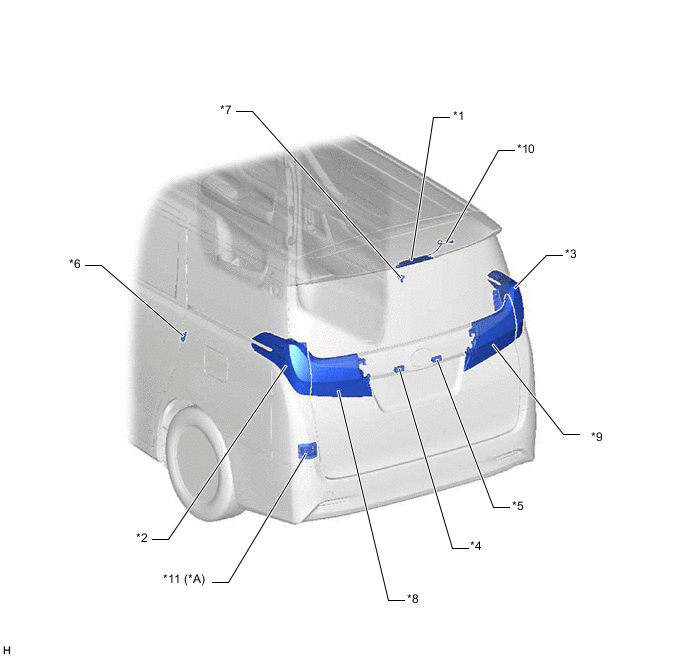

ILLUSTRATION
| *A | w/ Rear Fog Light and without Door Ajar Warning Buzzer Function | - | - |
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | REAR COMBINATION LIGHT ASSEMBLY LH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY RH | *4 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *5 | LICENSE PLATE LIGHT ASSEMBLY RH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *8 | REAR LIGHT ASSEMBLY LH - REAR LIGHT LED - REAR LIGHT LENS AND BODY LH - REAR LIGHT SOCKET AND WIRE LH |
| *9 | REAR LIGHT ASSEMBLY RH - REAR LIGHT LED - REAR LIGHT LENS AND BODY RH - REAR LIGHT SOCKET AND WIRE RH |
*10 | CENTER STOP LIGHT CORD ASSEMBLY |
| *11 | REAR FOG LIGHT SET | - | - |

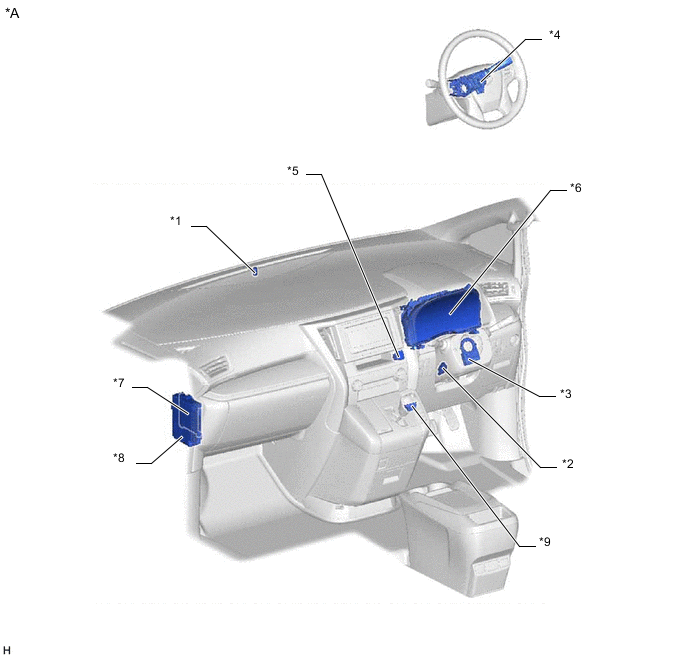

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | STEERING SENSOR |
| *7 | JUNCTION BLOCK ASSEMBLY LH - ECU-ACC FUSE - ECU-IG NO.1 FUSE - ECU-IG NO.3 FUSE - ECU-IG NO.4 FUSE - METER FUSE - BKUP LP FUSE - TAIL FUSE - HAZ FUSE - FOG RR FUSE (w/ Rear Fog Light) - IG1 NO.1 RELAY - ACC RELAY - IG1 NO.3 RELAY - TAIL RELAY - FOG RELAY (w/ Rear Fog Light) |
*8 | MAIN BODY ECU (MULTIPLEX NET WORK BODY ECU) |
| *9 | DLC3 | - | - |

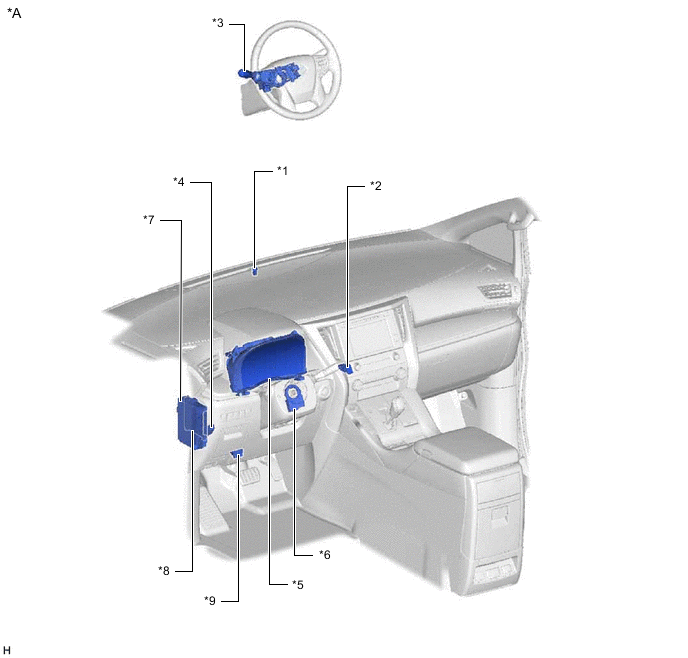

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | STEERING SENSOR | *4 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *5 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NET WORK BODY ECU) | *8 | JUNCTION BLOCK ASSEMBLY LH - ECU-ACC FUSE - ECU-IG NO.1 FUSE - ECU-IG NO.3 FUSE - ECU-IG NO.4 FUSE - METER FUSE - BKUP LP FUSE - TAIL FUSE - HAZ FUSE - FOG RR FUSE (w/ Rear Fog Light) - IG1 NO.1 RELAY - ACC RELAY - IG1 NO.3 RELAY - TAIL RELAY - FOG RELAY (w/ Rear Fog Light) |
| *9 | DLC3 | - | - |
