LIGHTING SYSTEM PARTS LOCATION

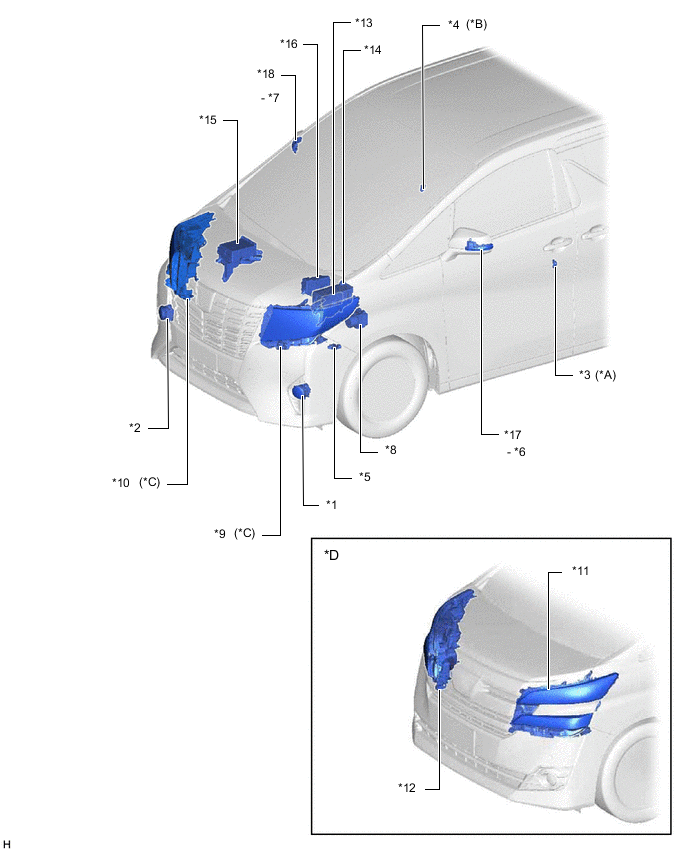

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | for ALPHARD | *D | for VELLFIRE |
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FOG LIGHT ASSEMBLY RH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *8 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |
| *9 | HEADLIGHT SUB-ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH (MAIN) - HEADLIGHT UNIT ASSEMBLY LH - CLEARANCE LIGHT LED UNIT ASSEMBLY LH (w/ Cornering Light) - CLEARANCE LIGHT LED UNIT LH (w/o Cornering Light) - CORNERING LIGHT UNIT ASSEMBLY LH (w/ Cornering Light) |
*10 | HEADLIGHT SUB-ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH (SUB) - HEADLIGHT UNIT ASSEMBLY RH - CLEARANCE LIGHT LED UNIT ASSEMBLY RH (w/ Cornering Light) - CLEARANCE LIGHT LED UNIT RH (w/o Cornering Light) - CORNERING LIGHT UNIT ASSEMBLY RH (w/ Cornering Light) |
| *11 | HEADLIGHT SUB-ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH (MAIN) - HEADLIGHT UNIT ASSEMBLY LH - CLEARANCE LIGHT LED UNIT ASSEMBLY LH - NO. 2 CLEARANCE LIGHT LED UNIT ASSEMBLY LH (w/ Cornering Light) - CORNERING LIGHT UNIT ASSEMBLY LH (w/ Cornering Light) |
*12 | HEADLIGHT SUB-ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH (SUB) - HEADLIGHT UNIT ASSEMBLY RH - CLEARANCE LIGHT LED UNIT ASSEMBLY RH - NO. 2 CLEARANCE LIGHT LED UNIT ASSEMBLY RH (w/ Cornering Light) - CORNERING LIGHT UNIT ASSEMBLY RH (w/ Cornering Light) |
| *13 | NO. 1 INTEGRATION RELAY - FR FOG FUSE - FR FOG RELAY |
*14 | NO. 1 ENGINE ROOM RELAY BLOCK - ECU-B NO.1 FUSE - J/B ALT FUSE - H-LP LH FUSE - H-LP LH RELAY |
| *15 | NO. 2 ENGINE ROOM RELAY BLOCK - STOP FUSE - H-LP RH FUSE - H-LP RH RELAY |
*16 | ECM |
| *17 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *18 | OUTER REAR VIEW MIRROR ASSEMBLY RH |

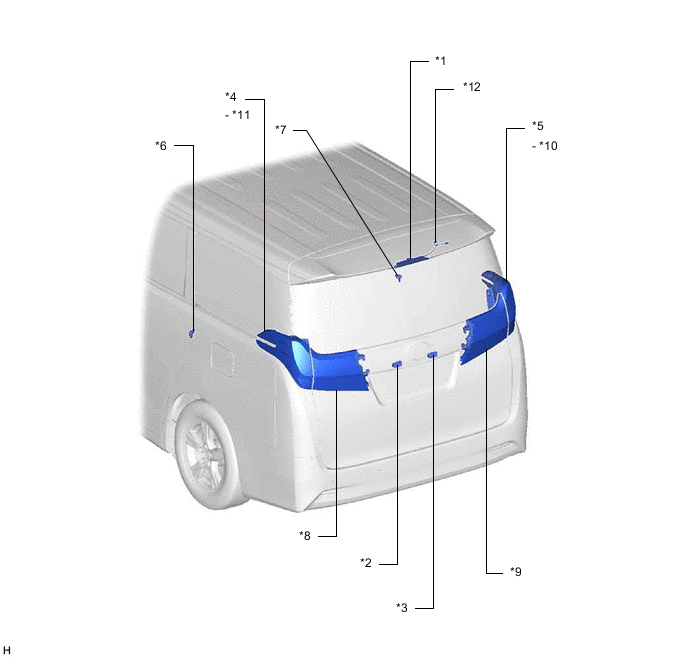

ILLUSTRATION
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY RH | *4 | REAR COMBINATION LIGHT LENS AND BODY LH |
| *5 | REAR COMBINATION LIGHT LENS AND BODY RH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *8 | REAR LIGHT LENS AND BODY LH |
| *9 | REAR LIGHT LENS AND BODY RH | *10 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *11 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH | *12 | CENTER STOP LIGHT CORD ASSEMBLY |

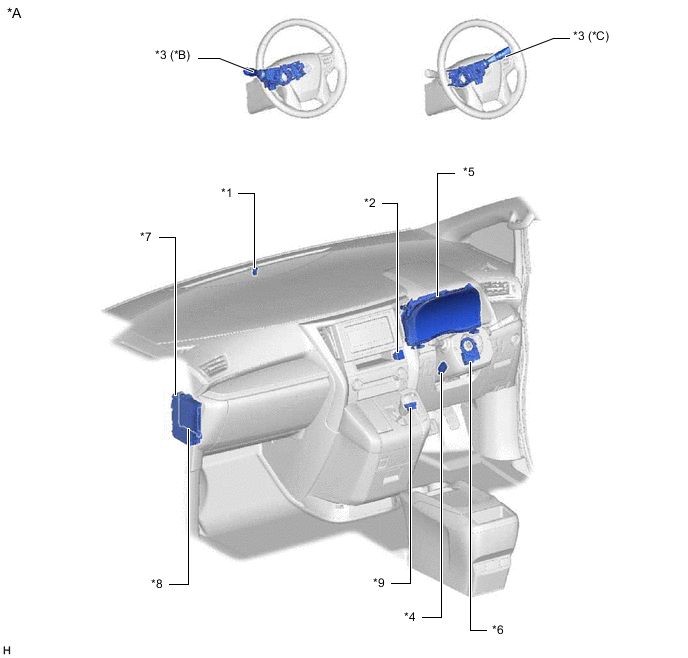

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | STEERING SENSOR |
| *7 | JUNCTION BLOCK ASSEMBLY LH - ECU-B NO.1 FUSE - ECU-ACC FUSE - ECU-IG NO.1 FUSE - ECU-IG NO.3 FUSE - ECU-IG NO.4 FUSE - METER FUSE - BKUP LP FUSE - TAIL FUSE - HAZ FUSE - FOG RR FUSE (w/ Rear Fog Light) - IG1 NO.1 RELAY - ACC RELAY - IG1 NO.3 RELAY - TAIL RELAY - FOG RELAY (w/ Rear Fog Light) |
*8 | MAIN BODY ECU (MULTIPLEX NET WORK BODY ECU) |
| *9 | DLC3 | - | - |
ILLUSTRATION
| *A | for RHD | *B | for LH Side |
| *C | for RH Side | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | STEERING SENSOR |
| *7 | JUNCTION BLOCK ASSEMBLY LH - ECU-B NO.1 FUSE - ECU-ACC FUSE - ECU-IG NO.1 FUSE - ECU-IG NO.3 FUSE - ECU-IG NO.4 FUSE - METER FUSE - BKUP LP FUSE - TAIL FUSE - HAZ FUSE - FOG RR FUSE (w/ Rear Fog Light) - IG1 NO.1 RELAY - ACC RELAY - IG1 NO.3 RELAY - TAIL RELAY - FOG RELAY (w/ Rear Fog Light) |
*8 | MAIN BODY ECU (MULTIPLEX NET WORK BODY ECU) |
| *9 | DLC3 | - | - |
