POWER WINDOW REGULATOR MOTOR(for Rear Door) COMPONENTS

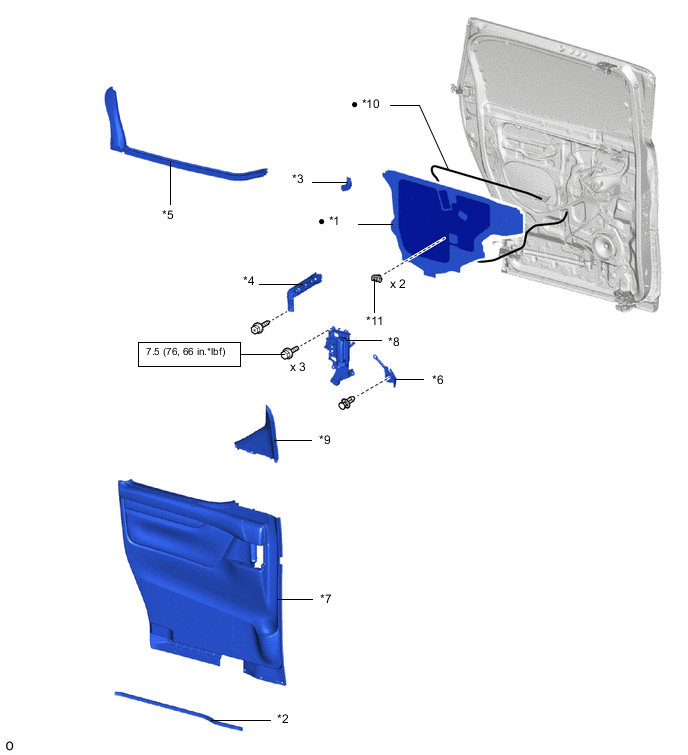

ILLUSTRATION
| *1 | NO. 2 SLIDE DOOR SERVICE HOLE COVER | *2 | NO. 3 SLIDE DOOR WEATHERSTRIP LH |
| *3 | REAR DOOR FRONT BELT SEAL LH | *4 | REAR DOOR FRONT WINDOW GUIDE LH |
| *5 | REAR DOOR INNER GLASS WEATHERSTRIP WITH GARNISH | *6 | REAR DOOR LOCKING CONTROL LINK SUB-ASSEMBLY LH |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY LH | *8 | SLIDE DOOR HANDLE ASSEMBLY LH |
| *9 | SLIDE DOOR WINDOW GARNISH LH | *10 | BUTYL TAPE |
| *11 | CLAMP | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *2 | REAR DOOR GLASS RUN LH |
| *3 | REAR DOOR GLASS SUB-ASSEMBLY LH | *4 | REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH |
| *5 | SLIDE DOOR PANEL COVER SUB-ASSEMBLY LH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
MP grease |
